307V 15.36KWH LiFePO4 Lithium Battery

307V/ 15.36KWH LiFePO4 Lithium Battery High Voltage Series - SankoPower

SankoPower produce and supply solar lithium iron phosphate batteries, which also called solar power bank, solar Lithium battery, LiFePO4 lithium battery pack, LiFePO4 battery storage system. SankoPower is LiFePO4 battery manufacturer speciallizing in customized lithium battery storage solution. SankoPower deep cycle solar batteries include low voltage and high voltage series, wall mounted and modular stacked both.

LBF Series is high voltage modular stacked design solar lithium battery system, 205V/10.24KWH, 256V/12.8KWH, 300V/15.36KWH, 358V/17.92KWH are most popular high voltage battery, this 180V -700V High Voltage Lithium-Ion Battery Pack have long lifespan over 15 years use life, 6000 cycles. The solar battery storage system is for Three Phase off grid/ hybrid solar inverters, and its smart BMS supports communication with different brand inverters.

307V15.36KWH LiFePO4 Lithium Battery - SankoPower Brief

307V/ 15.36KWH LiFePO4 Lithium Battery are high-voltage lithium battery modules specially developed for energy storage system (ESS), with lithium iron phosphate batteries as the core, equipped with high-performance battery management system (BMS), which make it high safety, high energy density, long cycle life, etc. Based on the application requirements of home energy storage batteries, 307V/ 15.36KWH LiFePO4 Lithium Battery has been uniquely designed and innovated in compatibility, energy density, power density, safety, operability, and product appearance, which can bring best application experience to users.

The High voltage LFP battery LBF series are high-voltage energy storage battery adopts a modular design, divided into master control module and slave control module. The 307V/ 15.36KWH LiFePO4 Lithium Battery LBF Series have highest flexibility for the installation of cabinet, rack and container structures, and 307V/ 15.36KWH LiFePO4 battery provide customers with the flexibility of deploying an energy storage system at any node in this field supports the spontaneous self-use of PV solar, storage of excess electricity, adjustment of peak and valley electricity prices, peak-shift power consumption, emergency power backup functions, ect.

SankoPower LBF High Voltage LIFEPO4 Lithium Battery Application

Lifespan more than 15 years
Modular design, high energy density
Support multiple modules in series, up to 12 modules can be connected in series;
Wide voltage range design, voltage range from 100Vdc to 1000Vdc
Support maximum charge and discharge at 1C
In order to ensure the normal operation of the ESS in the high-cold area, the battery pack has been added an intelligent heating design
An independent firefighting system is designed in each module to ensure the safety of use under the most extreme conditions
High-performance fuses, relays, and circuit breakers integrated in the system promise the safety of the system.
Install against the wall, with side cable outlet, convenient for maintenance
DIY design, save labor cost
Multiple communication interfaces: RS485, RS232, CAN
Highly compatible BMS, the protocol built-in compatible with many well-known brand storage inverters in the industry;
Certification: TUV, CE, UN38.3, MSDS etc

307V/ 15.36KWH High Voltage LiFePO4 Lithium Battery Pack

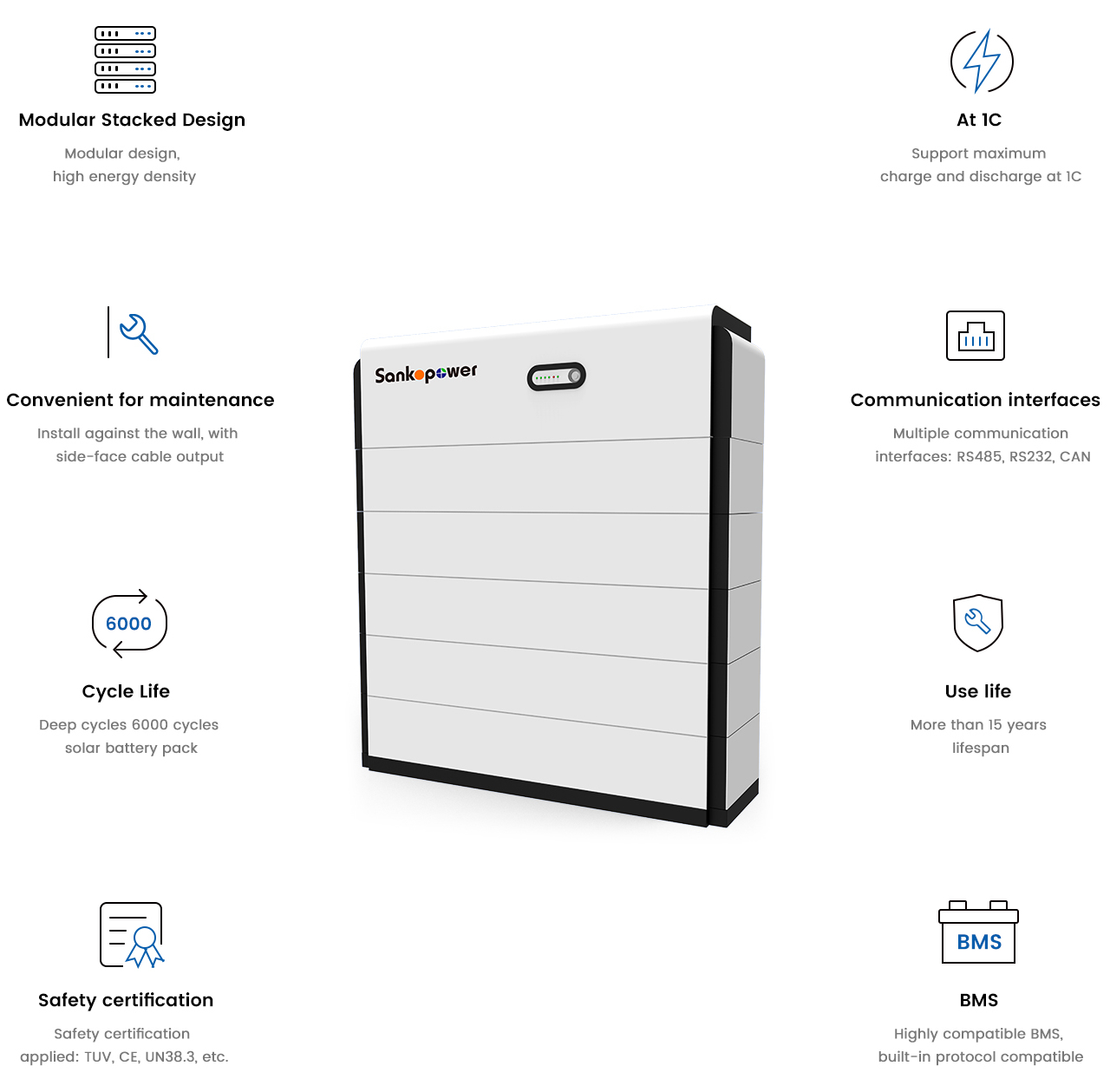

Core Advantages

Models

205V 10.24KWH LiFePO4 Lithium Battery
- Lifespan more than 15 years
- Deep Cycle Battery 6000 cycles
- Modular design, high energy density
- Install against the wall, with side cable outlet
- Wide voltage range design, voltage range from 100 Vdc to 1000 VdcRead More
256V 12.8KWH LiFePO4 Lithium Battery
- Lifespan more than 15 years
- Deep Cycle Battery 6000 cycles
- Modular design, high energy density
- Install against the wall, with side cable outlet
- Wide voltage range design, voltage range from 100 Vdc to 1000 VdcRead More
307V 15.36KWH LiFePO4 Lithium Battery
- Lifespan more than 15 years
- Deep Cycle Battery 6000 cycles
- Modular design, high energy density
- Install against the wall, with side cable outlet
- Wide voltage range design, voltage range from 100 Vdc to 1000 VdcRead More
358V 17.92KWH LiFePO4 Lithium Battery
- Lifespan more than 15 years
- Deep Cycle Battery 6000 cycles
- Modular design, high energy density
- Install against the wall, with side cable outlet
- Wide voltage range design, voltage range from 100 Vdc to 1000 VdcRead More

307V 15.36KWH High Voltage LiFePO4 Lithium Battery Pack-SankoPower Brief

307V 15.36KWH High Voltage LiFePO4 Lithium Battery Pack-Feature

Lifespan more than 15 years
Modular design, high energy density
Support multiple modules in series, up to 12 modules can be connected in series;
Wide voltage range design, voltage range from 100Vdc to 1000Vdc
Support maximum charge and discharge at 1C
In order to ensure the normal operation of the ESS in the high-cold area, the battery pack has been added an intelligent heating design
An independent firefighting system is designed in each module to ensure the safety of use under the most extreme conditions
High-performance fuses, relays, and circuit breakers integrated in the system promise the safety of the system.
Install against the wall, with side cable outlet, convenient for maintenance
DIY design, save labor cost
Multiple communication interfaces: RS485, RS232, CAN
Highly compatible BMS, the protocol built-in compatible with many well-known brand storage inverters in the industry;
Certification: TUV, CE, UN38.3, MSDS etc

307V15.36KWH LiFePO4 Lithium Battery - SankoPower Features

SPECIFICATION

High Voltage Lithium Battery

Model

7.68KWh

10.24KWh

12.8KWh

15.36KWh

17.92KWh

20.48KWh

23.04KWh

25.6KWh

28.16KWh

30.72KWh

Technology Datas

Battery Model Number in Series

Rating Energy(kwh)

7.68KWh

10.24KWh

12.8KWh

15.36KWh

17.92KWh

20.48KWh

23.04KWh

25.6KWh

28.16KWh

30.72KWh

Rating Voltage(V)

153.6V

204.8V

256.0V

307.2V

358.4V

409.6V

460.8V

521.0V

563.2V

614.4V

Usable Energy(kwh）

6.9KWh

9.2KWh

11.52KWh

13.8KWh

16.13KWh

18.4KWh

20.7KWh

23KWh

25.3KWh

27.6KWh

Rating Capacity

50Ah

Voltage Range(V)

（44.8~57.6）×N (N=Battery module number in series)

Max. Change Current(A）

25A（ recommended ）/50A（Max.）

Max. Discharge Current(A)

25A（ recommended ）/50A（Max.）

LifeCycle Times

80% DOD，>6000 Times，SOC>70%

Communication Protocol

RS485/RS232/CAN2.0.

Protection Function

Over-voltage, under-voltage, Over-temperature, Low-temperature, Short-circuit

Working Conditions

Installation Position

indoor

Working Temperature Range

-10℃~50℃

The Best Working Temperature Range

20℃~30℃

Storage Temperature Range

-30℃~60℃

Protection

IP20

Working Humidity

5%-95%（non-condensing）

Altitude Required

≤2000m

Cooling

Natural Cooling

Size(W×D×H, mm)

700*300*(420+ 130*(N-2)N=Battery module number in series

Weight(kg)

52kg+28kg*(N-2; 2

Certification

TUV、CE、UN38.3
