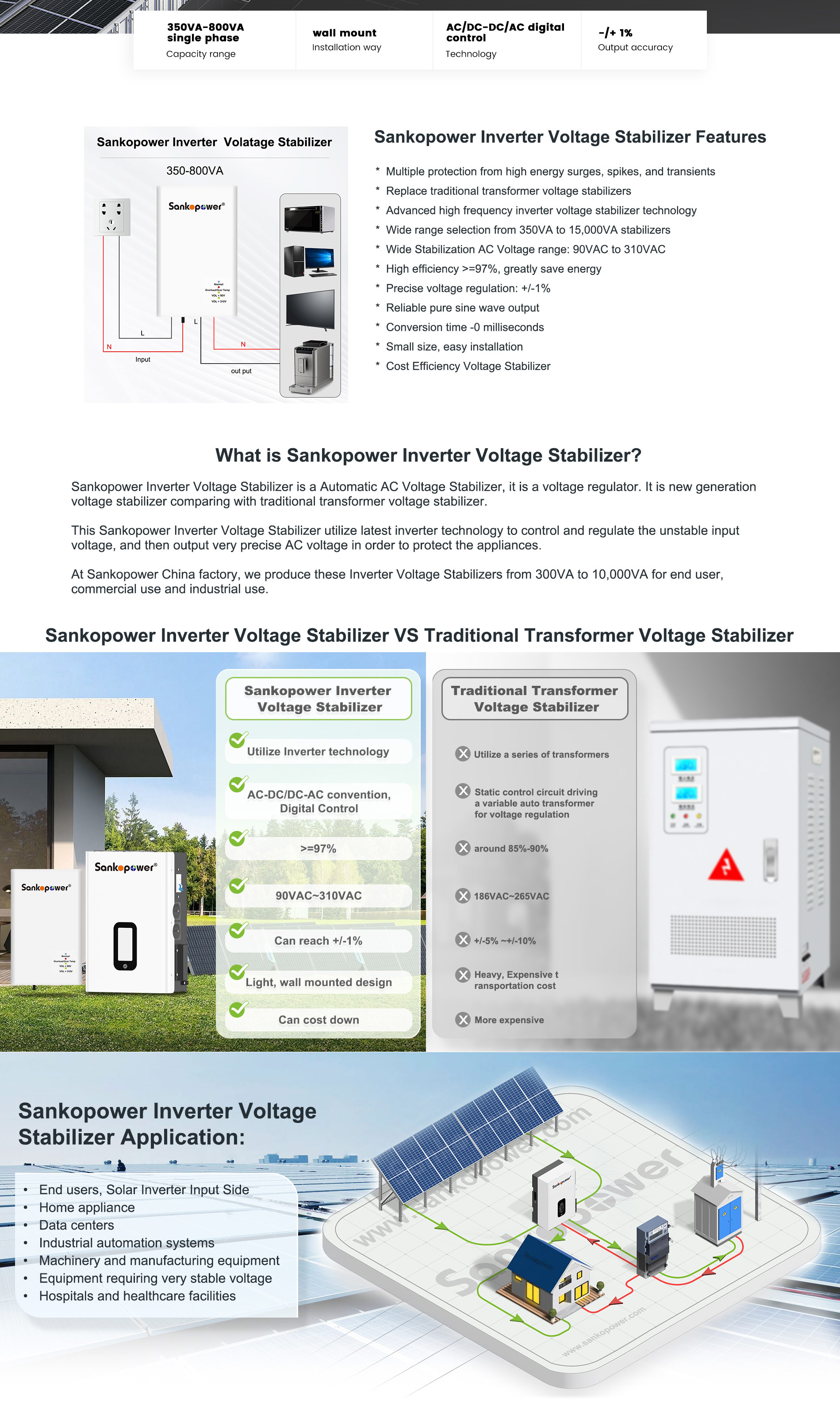

Sankopower Inverter Voltage Stabilizers can greatly avoid energy losses and protect the appliance from high energy surges, spikes, and transients. Sankopower Inverter Voltage Stabilizers utilize the latest inverter technology, AC/DC -DC/AC power conversion technology. This Inverter Voltage Stabilizer can perfectly replace the traditional voltage stabilizers with absolute advantages.
The traditional voltage stabilizers use transformers and very heavy. Now Sankopower new generation Inverter Voltage Stabilizers can greatly improve the efficiency, and its voltage regulation precise can meet +/-1%. The input AC voltage is wider from 90VAC t0 310VAC.
Due to its light design, it help customer reduce shipping cost. Compare with traditional transformer voltage stabilizer, Sankpower Inverter Voltage Stabilizer can help customer cost down a lot.
Sankopower Inverter Voltage Stabilizers can greatly avoid energy losses and protect the appliance from high energy surges, spikes, and transients. Sankopower Inverter Voltage Stabilizers utilize the latest inverter technology, AC/DC -DC/AC power conversion technology.
This Inverter Voltage Stabilizer can perfectly replace the traditional voltage stabilizers with absolute advantages.
The traditional voltage stabilizers use transformers and very heavy.
Now Sankopower new generation Inverter Voltage Stabilizers can greatly improve the efficiency, and its voltage regulation precise can meet +/-1%. The input AC voltage is wider from 90VAC t0 310VAC.
Due to its light design, it help customer reduce shipping cost. Compare with traditional transformer voltage stabilizer, Sankpower Inverter Voltage Stabilizer can help customer cost down a lot.
| Model | 350VA | 550VA | 800VA | |
| Type | Inverter Voltage Stabilizer | Inverter Voltage Stabilizer | Inverter Voltage Stabilizer | |
| Input parameters | Qty of phases | Single Phase | Single Phase | Single Phase |
| Nominal output Power, W | 300W | 400W | 600W | |
| Minimum of input voltage, V | 90 | 90 | 90 | |
| Maximum of input voltage, V | 310 | 310 | 310 | |
| Range of input frequency, Hz | 50 | 50 | 50 | |
| Input Network Type | AC/DC double transform | AC/DC double transform | AC/DC double transform | |
| Generator Compatibility | compatible | compatible | compatible | |
| Input voltage and output load range: |
Input
165Vac-310Vac,100% load Input 135Vac,80% load Input 90Vac,60% load |
Input
165Vac-310Vac,100% load Input 135Vac,80% load Input 90Vac,60% load |
Input
165Vac-310Vac,100% load Input 135Vac,80% load Input 90Vac,60% load |
|
| Input voltage and output load range curve |
|
|
|
|
| Undervoltage protection | Yes | Yes | Yes | |
| Overvoltage protection | Yes | Yes | Yes | |
| Input power factor | 0.99 | 0.99 | 0.99 | |
| Maximum input current | 2.1A | 2.8A | 4.2A | |
| No-load power | 25W | 25W | 25W | |
| Starting mode | External key switch, the board starts after power-on | External key switch, the board starts after power-on | External key switch, the board starts after power-on | |
| Output indicators | Output voltage accuracy (220V) | 220≤2% | 220≤2% | 220≤2% |
| Minimum of output voltage | 216 | 216 | 216 | |
| Maximum of output voltage | 224 | 224 | 224 | |
| Frequency range | 43Hz - 57Hz | 43Hz - 57Hz | 43Hz - 57Hz | |
| Output signal type | Pure sine wave | Pure sine wave | Pure sine wave | |
| Stabilizing speed | 0s | 0s | 0s | |
| Output current | 1.6A | 2.5A | 3.6A | |
| Protection time | 2ms | 2ms | 2ms | |
| Output voltage nonlinear distortion coefficient | 1.50% | 1.50% | 1.50% | |
| Peak factor | 1.414 | 1.414 | 1.414 | |
| Overload capacity | 150% | 150% | 150% | |
| Efficiency | ≥97% | ≥97% | ≥97% | |
| Protection | Turn off voltage at low voltage | 90Vac | 90Vac | 90Vac |
| Turn off voltage at high voltage | 310Vac | 310Vac | 310Vac | |
| Overload protection | Yes | Yes | Yes | |
| Overheating protection | Yes | Yes | Yes | |
| Max overload | 150% | 150% | 150% | |
| Surge protection | Yes | Yes | Yes | |
| Power interference load protection | Yes | Yes | Yes | |
| Anti-high-frequency interference range | 150 kHz - 30 MHz | 150 kHz - 30 MHz | 150 kHz - 30 MHz | |
| Network disaster protection | NO | NO | NO | |
| Stabilizer failure protection | Yes | Yes | Yes | |
| Electronic automatic bypass | NO | NO | NO | |
| Indicators | Normal work | Blue color | Blue color | Blue color |
| Overload | Red Color | Red Color | Red Color | |
| Voltage lower 90 V | Yellow color | Yellow color | Yellow color | |
| Voltage higher 310V | Yellow color | Yellow color | Yellow color | |
| Control | Control | DSP | DSP | DSP |
| Others | Power cord | 1.5m (external package) | 1.5m (external package) | 1.5m (external package) |
| Mounting type | Desktop, wall | Desktop, wall | Desktop, wall | |
| Protection level | IP20 | IP20 | IP20 | |
| Output | An outlet | An outlet | An outlet | |
| Specification and weight | Product size(mm) | 158*77*260 | 158*77*260 | 158*77*260 |
| Net Weight | 1.6 | 1.6 | 1.6 | |
| Interior color box size (mm) | 198*80*253 | 198*80*253 | 198*80*253 | |
| PCS/CTN | 18PCS | 18PCS | 18PCS | |
| Carton size(mm) | 455*430*230 | 455*430*230 | 455*430*230 | |
| Gross weight | 12.6KG | 13.3KG | 13.9KG |
