18A/5000W, ideal power factor 1.0
Wide range of input voltages: 208VAC-240VAC
Smart design and unique lithium battery wake-up function

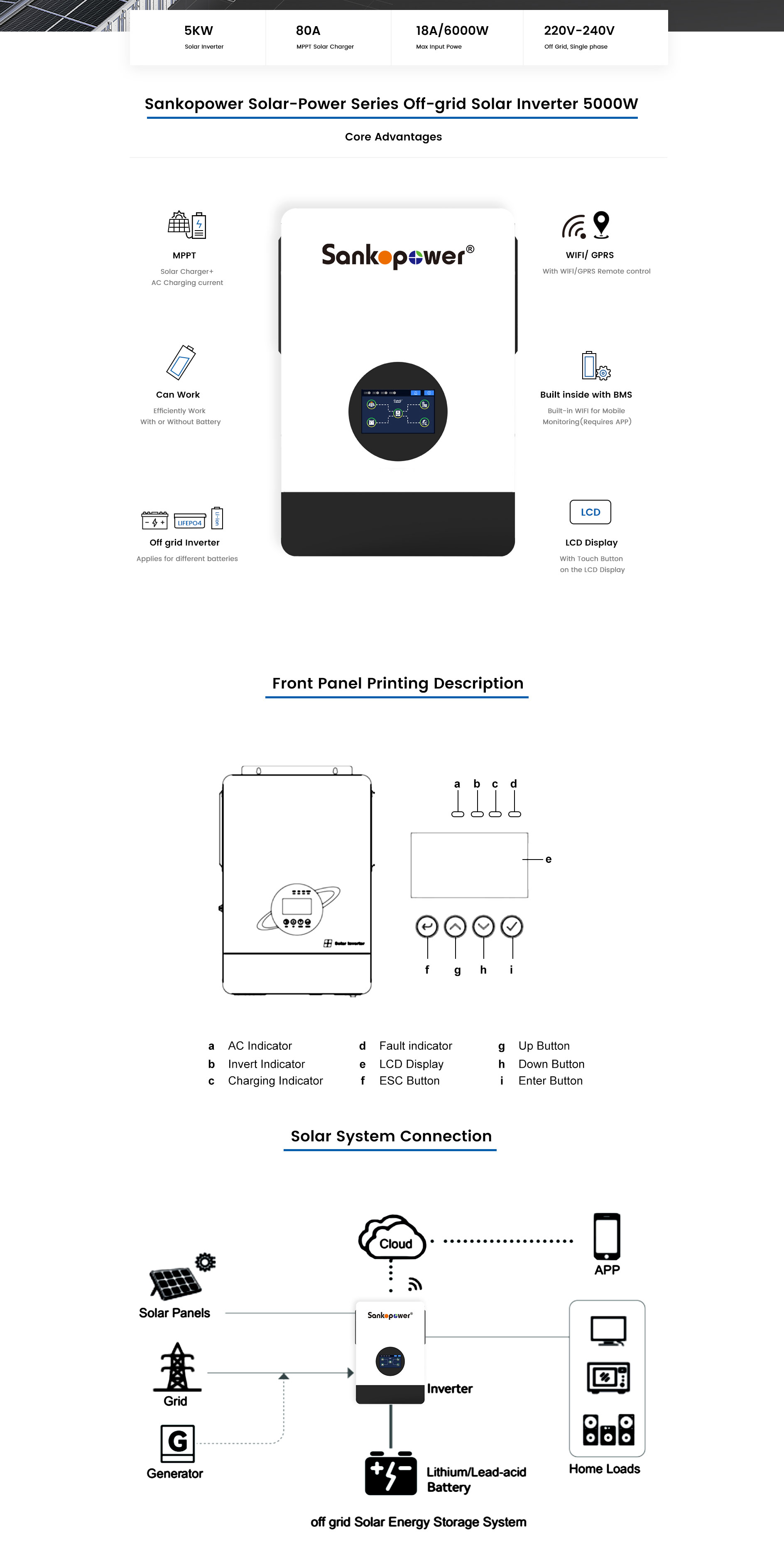

5KW/18V Off-Grid inverter, 18A/5000W, ideal power factor 1.0, energy supplied by the solar systme is can be 100% used by the load. Wide range of input voltages: 208VAC-240VAC, Smart design and unique lithium battery wake-up function，Solar-Power Series is a multi-function solar inverter/solar charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support. Touch Screen is on request (not FOC)
It is perfect backup power supply for off-grid system like household appliances, power tools, industrial equipment, and electronic audio and video equipment
5KWOff-Grid inverter, 18A/6000W, ideal power factor 1.0, energy supplied by the solar systme is can be 100% used by the load.
Wide range of input voltages: 208VAC-240VAC
Smart design and unique lithium battery wake-up function
Solar-Power Series is a multi-function solar inverter/solar charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support.
It is perfect backup power supply for off-grid system like household appliances, power tools, industrial equipment, and electronic audio and video equipment
| Technical Parameter | ||
| MODEL | Solar - Power Series 5000VA/5000W Off-grid solar | Solar - Power Series 5000VA/5000W Off-grid solar-B |
| Rate Power | 5000W/5000VA | 5000W/5000VA |
| Surge Power | Bypass 9200VA | Bypass 9200VA |
| Parallel Function | YES | YES |
| BMS | YES | YES |
| Touch Screen | NO | YES |
| Input | ||
| Main Topology | L+N+PE | |
| Nominal Voltage | 6.5kw, 50/60Hz±0.1% | |
| Power Factor | 1 | |
| Input Voltage Range | 90~280Vac±3V(Normal mode) / 170~280Vac±3V(UPS mode) | |
| Frequency Range | 40~70Hz±0.1%（Auto Sensing） | |
| Output | ||
| Output Voltage | 208Vac / 220Vac / 230Vac / 240Vac±5%，50/60Hz±0.1% | |
| Transfer Time | 10ms (For Personal Computers)， 10ms ( For Home Appliances ) | |
| Overlord Capacity（Battery Mode） | 1min@102%~110%Load；10s@110%~130%Load；3s@130%~150%Load；0.2s@>150% Load | |
| Peak Efficiency （Battery Mode） | 94.00% | |
| Standby Power | ＜60W | |
| Waveform | Pure sine wave | |
| Battery | ||
| Battery Voltage | 48VDC | |
| Start Voltage | 46VDC | |
| Constant Charging Voltage (adjustable) | 56.4VDC | |
| Overcharge Voltage | 60.4VDC | |
| Float Charging Voltage (adjustable) | 54VDC | |
| Charge | ||
| Charging method | MPPT | |
| Maximum input current | 18A | |
| Max. PV Array Power | 6000W | |
| PV Array Voltage Range | 120V-500VDC | |
| Charging current | 2-80A(adjustable) | |
| Max Charging Current (AC charger ) | 80A | |
| Max Charging Current (solar charger) | 80A | |
| Tracking efficiency | 99.5% max | |
| MPPT Range | 120~430VDC | |
| Display | ||
| LCD | Operating mode/load/input/output, etc | |
| Interface RS485, CAN | ||
| RS232 | 5PIN / Pitch2.0mm, Baud 2400 | |
| Expansion Slots | 2X5 PIN / Pitch2.54mm ; SNMP card、USB、Dry junction card、Lithium battery BMS communication card、WIFI（5KW） | |
| Parallel interface (optional) | DB9，Parallel card | |
| Environment | ||
| Temperature and humidity | -10℃~50℃（Derating when ambient temperature>40 ℃） ; 20%~95%（No condensation） | |
| Noise | ≤50dB | |
| Storage temperature | -15~60℃ | |
| Altitude | The altitude should not exceed 1000m, with a reduction of 1000m or more and a maximum of 4000m. Refer to IEC62040 | |
| Physical | ||
| Dimension D*W*H (mm) | 595*390*215 | |
| Net weight（KG） | 8.5 | |
| Gross weight （KG） | 9.7 | |
