18A/5000W, ideal power factor 1.0
Wide range of input voltages: 208VAC-240VAC
Smart design and unique lithium battery wake-up function
Sankopower Solar-Power Series Off-grid Solar Inverter 3600VA/3600W
3.6KW/18V Off-Grid inverter, 18A/5000W, ideal power factor 1.0, energy supplied by the solar systme is can be 100% used by the load. Wide range of input voltages: 208VAC-240VAC, Smart design and unique lithium battery wake-up function，Solar-Power Series is a multi-function solar inverter/solar charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support.It is perfect backup power supply for off-grid system like household appliances, power tools, industrial equipment, and electronic audio and video equipment
Sankopower Solar-Power Series Off-grid Solar Inverter 3600VA/3600W
3.6KW/18V Off-Grid inverter, 18A/5000W, ideal power factor 1.0, energy supplied by the solar systme is can be 100% used by the load.
Wide range of input voltages: 208VAC-240VAC
Smart design and unique lithium battery wake-up function

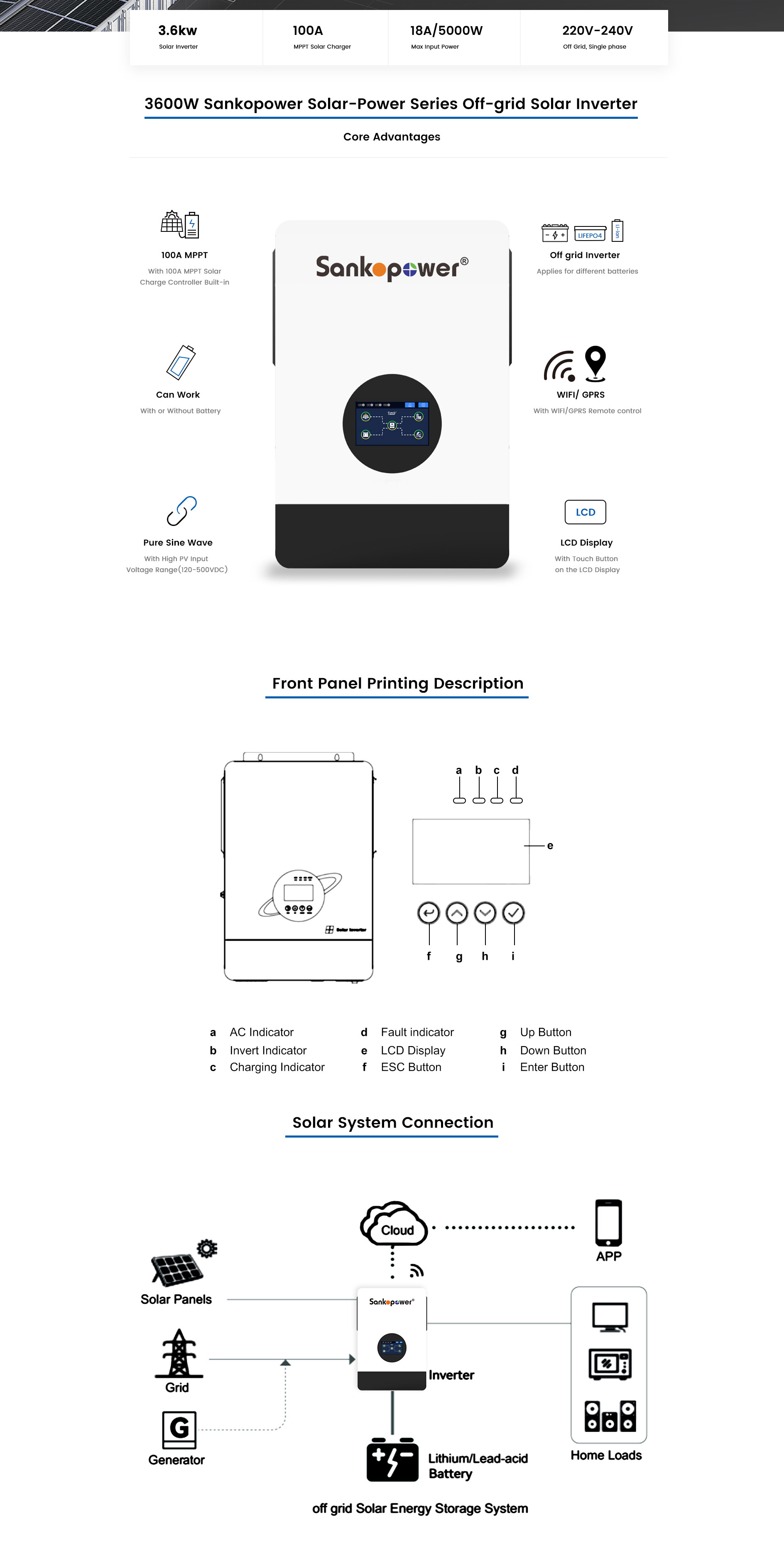

Solar-Power Series is a multi-function solar inverter/solar charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support.
It is perfect backup power supply for off-grid system like household appliances, power tools, industrial equipment, and electronic audio and video equipment
| Technical Parameter | |
| MODEL | Solar -Power Series 3600VA/3600W Off-grid solar |
| Rate Power | 3600W/3600VA |
| Surge Power | Bypass 5700VA |
| Parallel Function | NO |
| BMS | YES |
| Touch Screen | YES |
| Input | |
| Main Topology | 208-230VAC |
| Nominal Voltage | 230Vac，50/60Hz±0.1% |
| Power Factor | 1 |
| Input Voltage Range | 90~280Vac±3V(Normal mode) / 170~280Vac±3V(UPS mode) |
| Frequency Range | 40~70Hz±0.1%（Auto Sensing） |
| Output | |
| Output Voltage | 208Vac / 220Vac / 230Vac / 240Vac±5%，50/60Hz±0.1% |
| Transfer Time | 10ms (For Personal Computers)， 10ms ( For Home Appliances ) |
| Overlord Capacity（Battery Mode） | 1min@102%~110%Load；10s@110%~130%Load；3s@130%~150%Load；0.2s@>150% Load |
| Peak Efficiency （Battery Mode） | 92.70% |
| Standby Power | ＜60W |
| Waveform | Pure sine wave |
| Battery | |
| Battery Voltage | 24VDC |
| Start Voltage | 23VDC |
| Constant Charging Voltage (adjustable) | 28.2VDC |
| Overcharge Voltage | 30.5VDC |
| Float Charging Voltage (adjustable) | 27VDC |
| Charge | |
| Charging method | MPPT |
| Maximum input current | 18A |
| Max. PV Array Power | 5000W |
| PV Array Voltage Range | 500VDC |
| Charging current | 2-100A（adjustable） |
| Max Charging Current (AC charger ) | 100A |
| Max Charging Current (solar charger) | 100A |
| Tracking efficiency | 99.5% max |
| MPPT Range | 40~430VDC |
| Display | |
| LCD | Operating mode/load/input/output, etc |
| Interface RS485 / CAN | |
| RS232 | 5PIN / Pitch2.0mm, Baud 2400 |
| Expansion Slots | 2X5 PIN / Pitch2.54mm,SNMP card,USB,Dry junction card,Lithium battery BMS communication card, WIFI（5KW） |
| Parallel interface (optional) | / |
| Environment | |
| Temperature and humidity | -10℃~50℃（Derating when ambient temperature>40 ℃） ; 20%~95%（No condensation） |
| Noise | ≤50dB |
| Storage temperature | -15~60℃ |
| Altitude | The altitude should not exceed 1000m, with a reduction of 1000m or more and a maximum of 4000m. Refer to IEC62040 |
| Physical | |
| Dimension D*W*H (mm) | 595*390*215 |
| Net weight（KG） | 7.4 |
| Gross weight （KG） | 8.5 |
