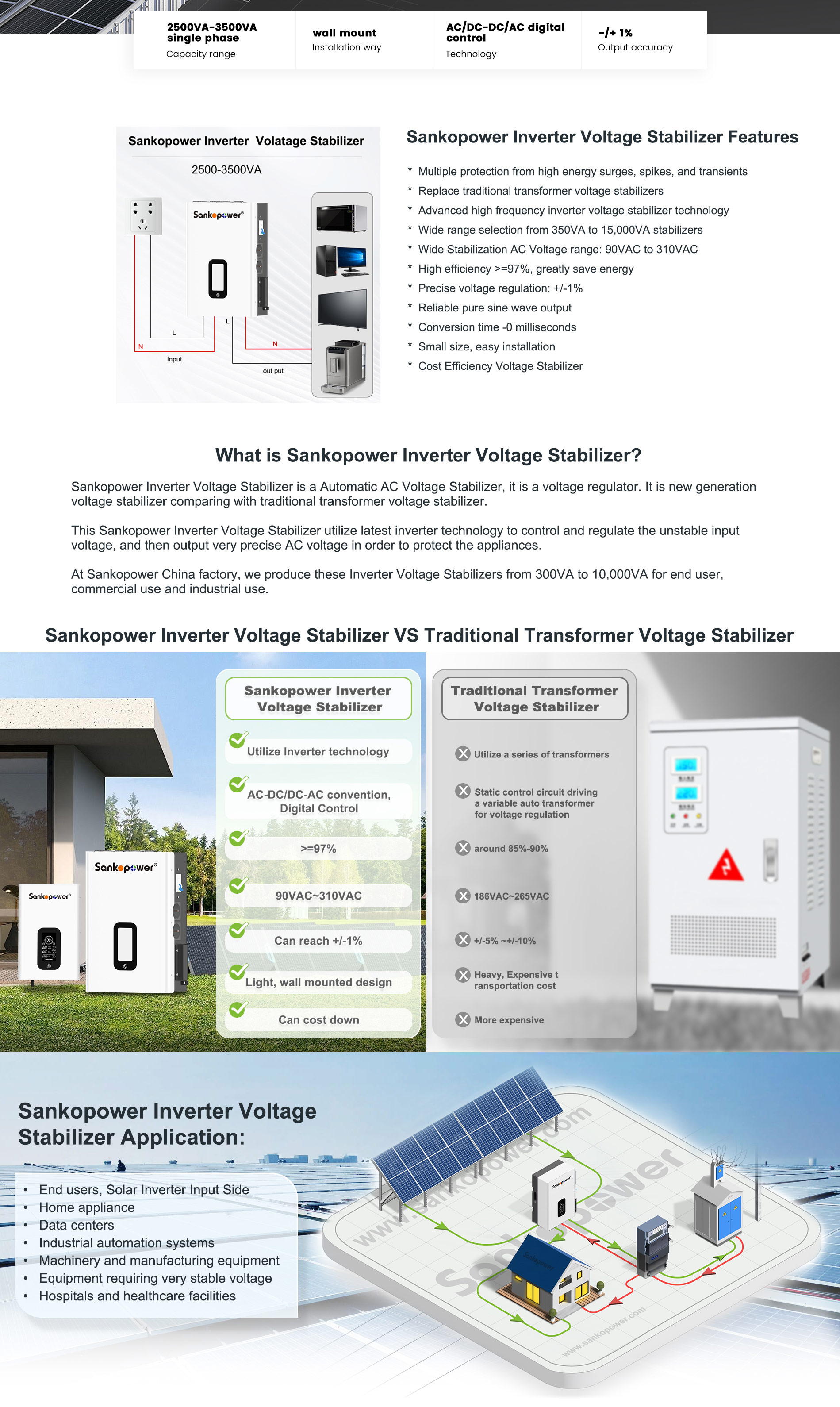

Sankopower Inverter Voltage Stabilizers can greatly avoid energy losses and protect the appliance from high energy surges, spikes, and transients. Sankopower Inverter Voltage Stabilizers utilize the latest inverter technology, AC/DC -DC/AC power conversion technology.
This Inverter Voltage Stabilizer can perfectly replace the traditional voltage stabilizers with absolute advantages.
The traditional voltage stabilizers use transformers and very heavy.
Now Sankopower new generation Inverter Voltage Stabilizers can greatly improve the efficiency, and its voltage regulation precise can meet +/-1%. The input AC voltage is wider from 90VAC t0 310VAC.
Due to its light design, it help customer reduce shipping cost. Compare with traditional transformer voltage stabilizer, Sankpower Inverter Voltage Stabilizer can help customer cost down a lot.
Sankopower Inverter Voltage Stabilizers can greatly avoid energy losses and protect the appliance from high energy surges, spikes, and transients. Sankopower Inverter Voltage Stabilizers utilize the latest inverter technology, AC/DC -DC/AC power conversion technology.
This Inverter Voltage Stabilizer can perfectly replace the traditional voltage stabilizers with absolute advantages.
The traditional voltage stabilizers use transformers and very heavy.
Now Sankopower new generation Inverter Voltage Stabilizers can greatly improve the efficiency, and its voltage regulation precise can meet +/-1%. The input AC voltage is wider from 90VAC t0 310VAC.
Due to its light design, it help customer reduce shipping cost. Compare with traditional transformer voltage stabilizer, Sankpower Inverter Voltage Stabilizer can help customer cost down a lot.
| Model | 2500VA | 3000VA | 3500VA | |
| Type | Inverter Voltage Stabilizer | Inverter Voltage Stabilizer | Inverter Voltage Stabilizer | |
| Input parameters | Qty of phases | single-phase | single-phase | single-phase |
| Nominal output Power, W | 2000W | 2500W | 2750W | |
| Minimum of input voltage, V | 90 | 90 | 90 | |
| Maximum of input voltage, V | 310 | 310 | 310 | |
| Range of input frequency, Hz | 50 | 50 | 50 | |
| Network type | AC/DC double transform | AC/DC double transform | AC/DC double transform | |
|
Input voltage and output load range |
input165Vac-310Vac,100%Load input135Vac,80%Load input90Vac,60%Load |
input165Vac-310Vac,100%Load input135Vac,80%Load input90Vac,60%Load |
input165Vac-310Vac,100%Load input135Vac,80%Load input90Vac,60%Load |
|
|
Input voltage and output load range curve |
|
|
|
|
| Undervoltage protection | Yes | Yes | Yes | |
| Overvoltage protection | Yes | Yes | Yes | |
| Input power factor | 0.99 | 0.99 | 0.99 | |
| Maximum input current | 13A | 17A | 18A | |
| No load power consumption | 40W | 40W | 40W | |
| Start mode | Turn on Breaker | Turn on Breaker | Turn on Breaker | |
| Output indicators | Output voltage accuracy (220V or 230V) |
±2%
(216-224 or 226-234V) |
±2%
(216-224 or 226-234V) |
±2%
(216-224 or 226-234V) |
| Minimum of output voltage, | 216 (226) | 216 (226) | 216 (226) | |
| Maximum of output voltage, | 224(234) | 224(234) | 224(234) | |
| Frequency range | 43Hz - 57Hz | 43Hz - 57Hz | 43Hz - 57Hz | |
| Output signal type | Pure sine wave | Pure sine wave | Pure sine wave | |
| Stabilizing speed | 0s | 0s | 0s | |
| Output current | 11.3A | 14A | 15.9A | |
| Protection time | 2ms | 2ms | 2ms | |
| Nonlinear distortion coefficient of output voltage | 1.50% | 1.50% | 1.50% | |
| Peak factor | 1.414 | 1.414 | 1.414 | |
| Overload capacity | 150% （At least 5S） | 150% （At least 5S） | 150% （At least 5S） | |
| Efficiency | ≥97% | ≥97% | ≥97% | |
| Protection |
Turn
off voltage under low voltage conditions |
90Vac | 90Vac | 90Vac |
|
Turn off voltage under high voltage
conditions |
310Vac | 310Vac | 310Vac | |
| Overload protection | Yes | Yes | Yes | |
| Overheating protection | Yes | Yes | Yes | |
| Max overload | 150% | 150% | 150% | |
| Surge protection | Yes | Yes | Yes | |
|
Power interference load protection |
Yes | Yes | Yes | |
|
Anti high-frequency interference range |
150 kHz - 30 MHz | 150 kHz - 30 MHz | 150 kHz - 30 MHz | |
|
Stabilizer fault protection |
Yes | Yes | Yes | |
|
Electronic automatic bypass |
NO | NO | NO | |
| LCD | Input and output voltage | Yes | Yes | Yes |
| Overload | Yes | Yes | Yes | |
| Over temperature | Yes | Yes | Yes | |
| Voltage lower 90 V | Yes | Yes | Yes | |
| Voltage higher 310V | Yes | Yes | Yes | |
| Control | Control | DSP | DSP | DSP |
| Cooling type | FAN | two fans | two fans | two fans |
| Others | Power cord | Input Wiring block | Input Wiring block | Input Wiring block |
| Mounting type | Desktop, wall mounted | Desktop, wall mounted | Desktop, wall mounted | |
| Protection level | IP20 | IP20 | IP20 | |
| Output | Two sockets | Two sockets | Two sockets | |
|
Specifications and weight |
Product size mm | 350*247*105 | 350*247*105 | 350*247*105 |
| Net weight | 4.4KG | 4.4KG | 4.5KG | |
| Gross weight of Color box size | 4.8KG | 4.8KG | 4.9KG | |
| Color box size (mm) | 405*275*141 | 405*275*141 | 405*275*141 | |
| PCS/CTN | 2PCS | 2PCS | 2PCS | |
| Carton Size(mm) | 421*291*322 | 421*291*322 | 421*291*322 | |
| Gross weight | 9.6KG | 9.6KG | 9.8KG |
