28A / 9000W, ideal power factor 1.0
Wide range of input voltages: 208VAC-240VAC
Smart design and unique lithium battery wake-up function

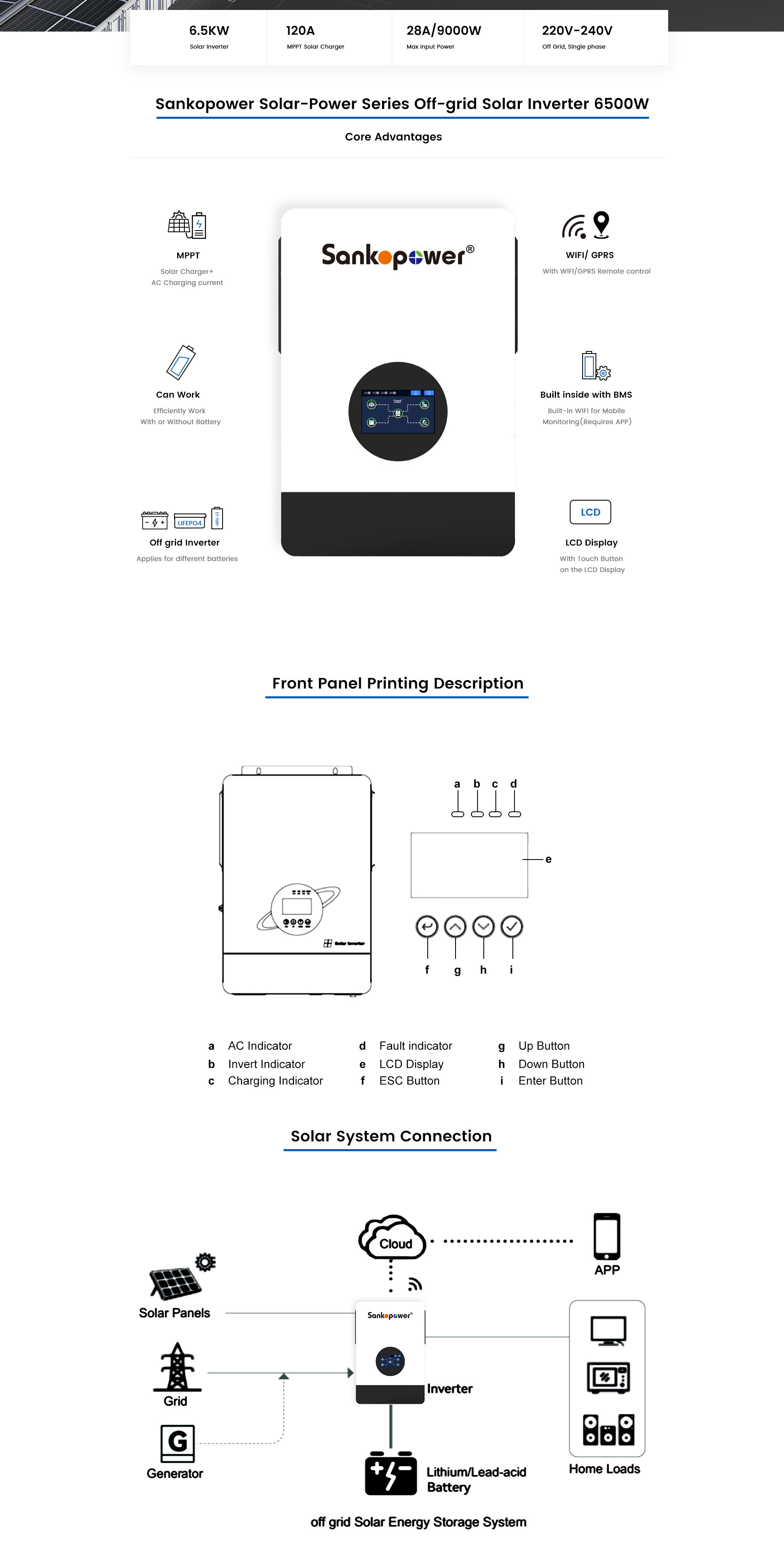

6KW/18V Off-Grid inverter, 28A / 9000W, ideal power factor 1.0, energy supplied by the solar systme is can be 100% used by the load. Wide range of input voltages: 208VAC-240VAC, Smart design and unique lithium battery wake-up function，Solar-Power Series is a multi-function solar inverter/solar charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support. It is perfect backup power supply for off-grid system like household appliances, power tools, industrial equipment, and electronic audio and video equipment.
Max Input Power: 28A/9000W, Power Factor 1.
Wide range of input voltages: 208VAC-240VAC.
Smart design and unique lithium battery wake-up function.
Support WIFl/GPRS remote monitoring,setting and upgrade.
Built-in MPPT controller, PV array input voltage can be up to 500V.
Flexible working modes with settable AC/Solar Input priority and output priority.
Advanced battery management; support lithium batteries and lead-acid batteries.
Support mirco grid system with seperate generator input terminal,and can remote control generator.
With CAN, RS485 for BMS communication
| Technical Parameter | |
| Model | Solar - Power Series 6500VA/6500W Off-grid solar |
| AC Input | |
| Rated Input Voltage (VAC) | 208 / 220 / 230 / 240; L + N + PE |
| Voltage Range (VAC) | 90~280±3 (normal mode); 170~280±3 (UPS mode) |
| Frequency (Hz) | 50 / 60 (Auto Adaptive) |
| AC Output | |
| Rated Capacity (kW) | 6.5 |
| Surge Power (kVA) | 12 |
| Voltage (VAC) | 208 / 220 / 230 / 240 |
| Power Factor (PF) | 1 |
| Frequency | 50/60Hz±0.1% |
| Switch Time (ms) | 10 (normal mode) / 10 (UPS mode) |
| Wave Form | Pure Sine Wave |
| 10min@102%~120%Load, 1min@120%~150%Load 10S@150%~200%Load, 5s@＞200%Load | |
| Overload Capacity (Battery Mode) | |
| Max. Efficiency (Battery Mode) | 93%@48VDC |
| Charger (PV / AC) | |
| Solar Charger Type | MPPT |
| Max PV Input Current / Input Power | 28A / 9000W |
| MPPT Range@Operating Voltage (VDC) | 60~450 |
| Max PV Open Circuit Voltage (VDC) | 500 |
| Max PV Charge Current (A) | 120 |
| Max AC Charge Current (A) | 120 |
| Max. Charge Current (PV + AC) (A) | 120 |
| Battery | |
| Rated Voltage (VDC) | 48 |
| Floating Charge Voltage (VDC) | 54 |
| Overcharge Protection (VDC) | 61 |
| Battery Type | Lithium and Lead-acid |
| Interface RS485,CAN | |
| HMI | LCD |
| Interface | CAN / RS485 / USB / Dry Contact / CT / Meter |
| Monitoring | WiFI Kit on Request |
| General Data | |
| Ingress Protection | IP21 |
| Operating Temperature | -10 ℃ ~ 50 ℃ |
| Relative Humidity | 5% ~ 95% (Non-condensing) |
| Storage Temperature | -15 ℃ ~ 60 ℃ |
| Net Weight (kg) | 10 |
| Dimensions (W*H*D) | 508*338*136.5mm |
| Max. Operating Altitude | 4000m (Derating above 1000m) |
