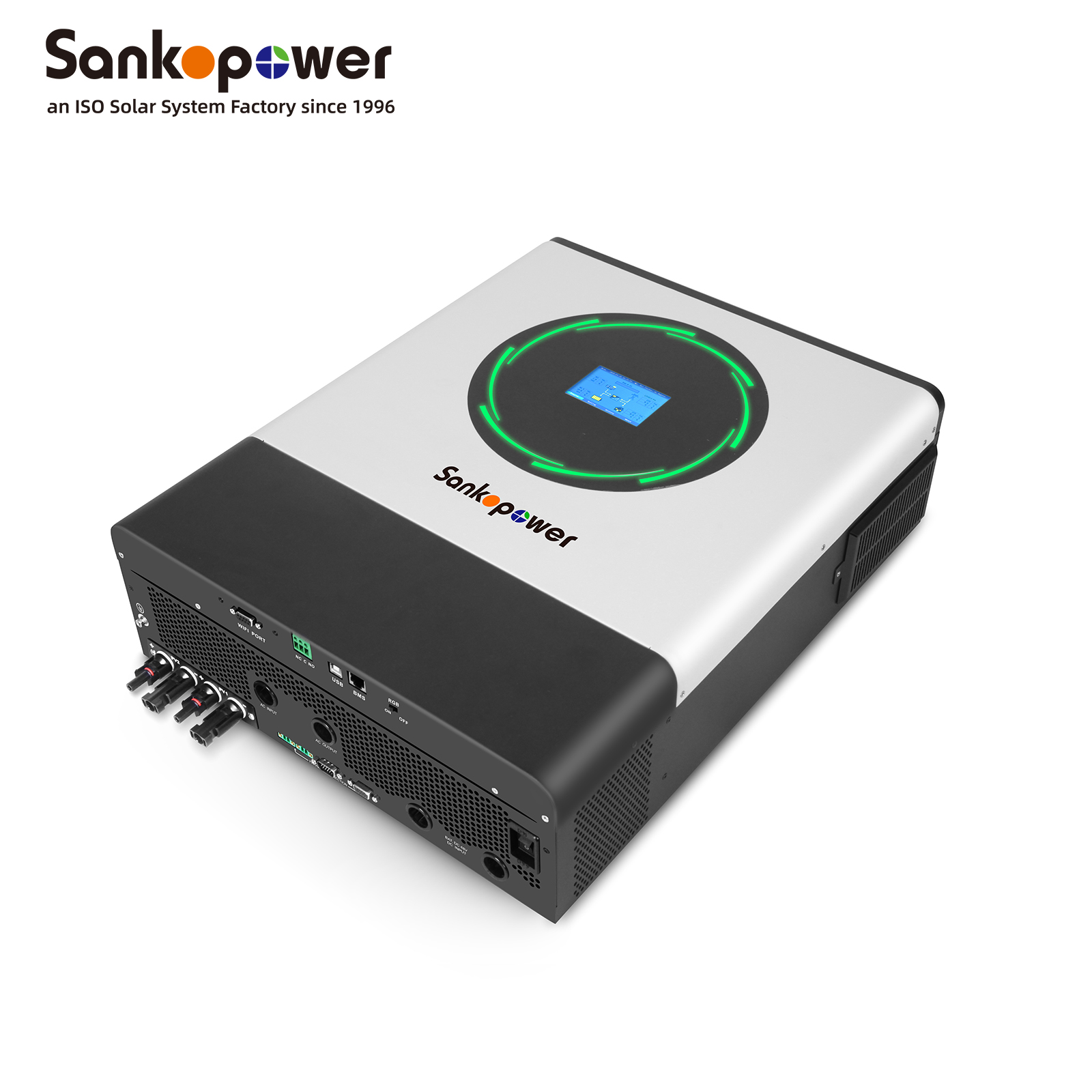

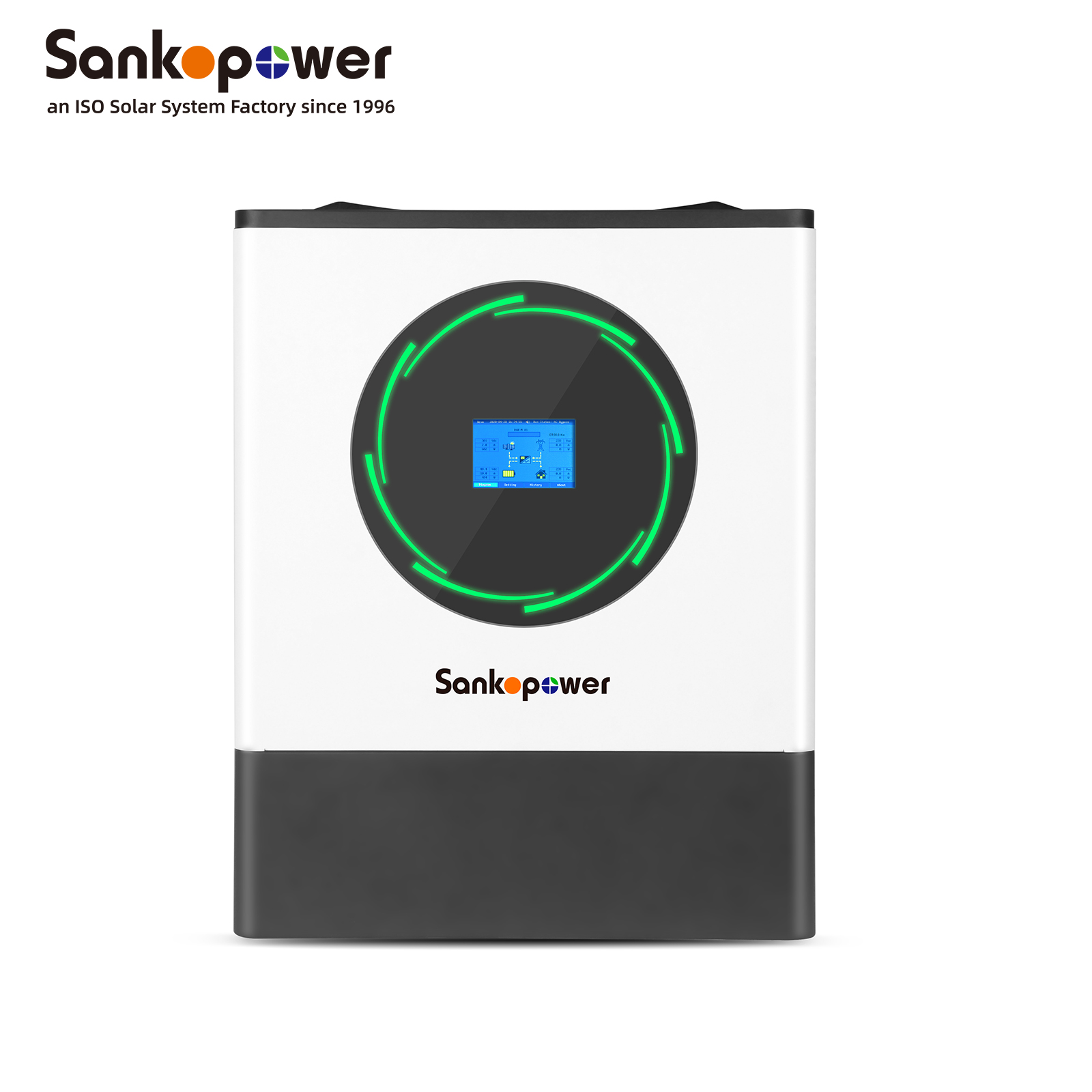

8KW Hybrid MPPT Solar Inverter SolarPolo Series - SankoPower

SankoPower Group offer on grid/ off grid/ hybrid residential solar inverter. This 8KW Hybrid single phase residential solar inverter is a multi-function solar inverter/solar charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support. It is perfect backup power supply for off-grid/hybrid solar system like household appliances, power tools, industrial equipment, and electronic audio and video equipment. This 8KW hybrid storage inverter is a real bybrid inverter, which can feed into the grid.

8KW Hybrid MPPT Solar Inverter SolarPolo Series Brief

SankoPower Group 8000W/48V SolarPolo Inverter is a REAL hybrid solar inverter/ Charger with multi-function, Off Grid and On Grid solar inverter, Support self-consumption and also can feed into the grid. This On grid/ Off grid solar inverter with 120A MPPT high PV input and RGB light, various communication as USB/RS232/Dry Contact. Pure Sine Wave, High frequency, with WIFI monitor built in, can parallel up to 6 units, can work with or without battery, with big LCD display & touch screen. Dual 18A MPPT Tracker, Max PV input 8KW.

8KW Hybrid MPPT Solar Inverter SolarPolo Series Features

  • 120A MPPT solar charger inside, max pv input 8kw+ (18A*2 )
  • 3 IN 1: MPPT INVERTER, ON GRID/OFF GRID/ HYBRID.
  • On grid and Off grid solar inverter
  • Support self-consumption and can feed into the grid.
  • Parallel function up to 6 units
  • With local Wifi built inside (Requires App. Remote Wifi optional)
  • USB on-the-go function
  • User programmable RGB lighting for different operation mode.
  • Smart battery management.
  • Compitable with different types of batteries:Lead acid, AGM, Gel, flooded, tubular,LiFePo4
  • Various communication such as USB/RS232/RS485/dry contact/WIFI/ optional.
  • Touch buttons on LCD display
  • Wide PV input range (Up to 450Vdc), support no battery working during the day time.
  • Auto restart while AC is recovering
  • Overload/ Over temperature/ short circuit protection
  • Cold start function

8KW SolarPolo Hybrid Solar inverter

NOTE 1: 8KW Hybrid MPPT Solar Inverter SolarPolo Series is a wide voltage Hybrid inverter. Solar panel input voltage must be higher than 120V so that can start up the solar inverter to work.
NOTE 2: 8KW Hybrid MPPT Solar Inverter SolarPolo Series supports the WIFI function, and have Built-in WIFI (Requires APP)
NOTE 3: 8KW Hybrid MPPT Solar Inverter SolarPolo Series has parallel function but customer have to buy parallel kit separately.

Model No. 8KW SolarPolo Hybrid Inverter
Basical information
Max. PV Input Power 8000W
Rated AC  Output Power 8000W
PV  Input(DC)
Max. DC Voltage 450VDC
MPPT Voltage Range 120-450VDC
No. of  MPPT Tracker/Max Input Current 2/18A(4000W*2)
AC Input(AC)
AC Start-up Voltage/Auto Restart Volt. 120Vac-140Vac/180Vac
Acceptable Input Voltage Range 90-280Vac or 170-280Vac
Max.. AC Input Currect 63A
Grid Output in Gri-Tie/Hybrid Operation(AC)
Nominal Output Volt. 220Vac/ 230Vac/ 240Vac, Single Phase
Output Voltage Range 184V-265Vac or 195-253V (Selectable)
Nominal Output Current 34.8A
Power Factor >0.9
Max. Conversion Efficiency(DC/AC) 96%
Battery Mode Output(AC)
Nominal Output Volt. 220Vac/ 230Vac/ 240Vac
Waveform Pure sine wave
Efficiency(DC to AC) 93%
Battery & Charger
Battery Type Supported Lead Acid/VRL  AVAGM/Deep Cycle/Gel/Flooded/Tubular/Lithium-lon
Nominal Battery Voltage 48Vdc
Max Solar Charge Current 120A
Max AC Charge Current 120A
Max Total Charge Current 120A
General
Physical
Products Dimension, D X W X H (mm) 552*422*152
Product Net Weight(kgs) 18.4
Gross Weight(kgs) 20.5
Packing Dimension, D X W X H (mm) 700mm*510mm*232mm,1PC/CTN
Parallel functions Optional Yes, optional, MAX 6pcs
Communication Interface RS232,USB,WIFI,TOUCH LCD
Environment
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operation Temperature -10℃ to 50℃
Storage Temperature -15℃ to 60℃
