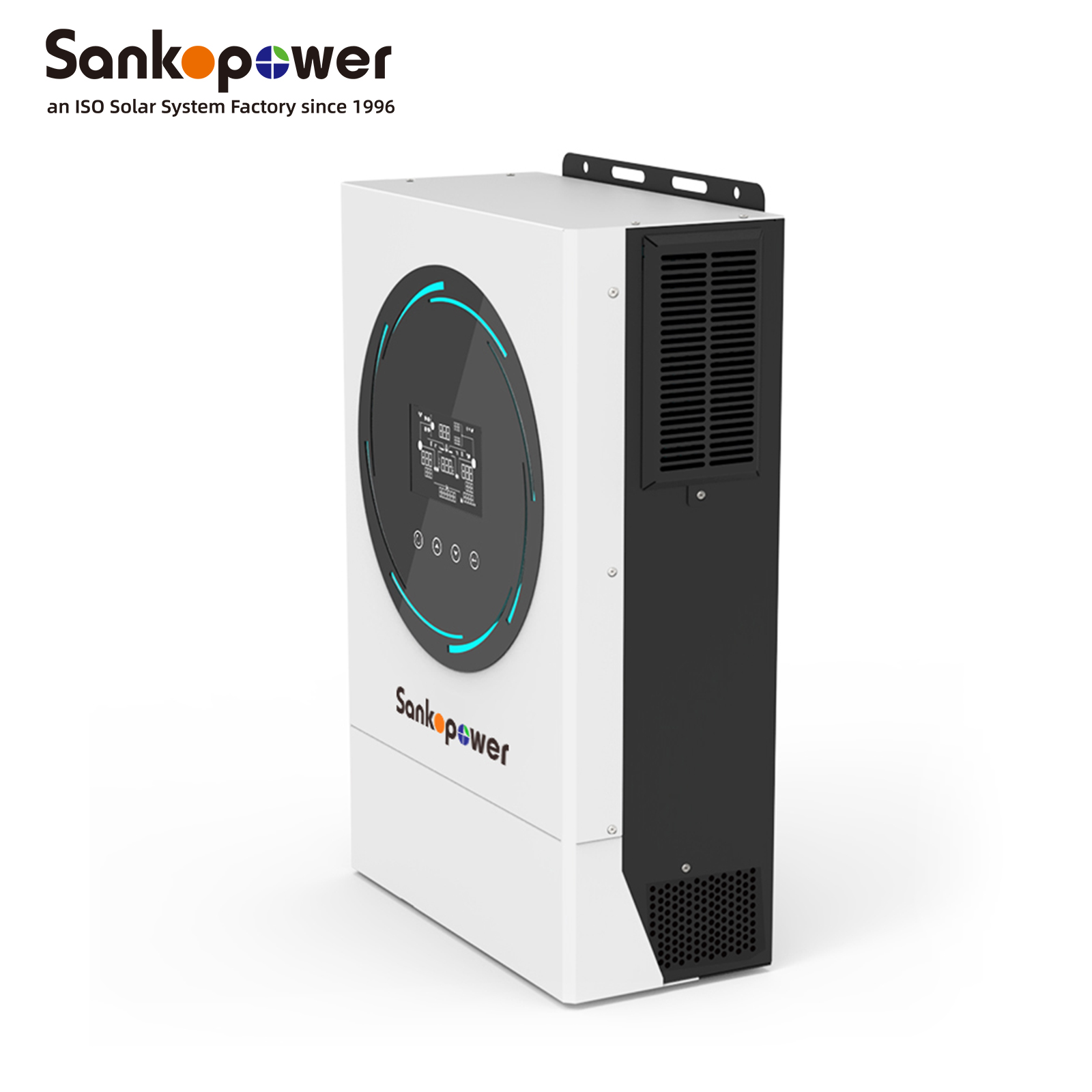

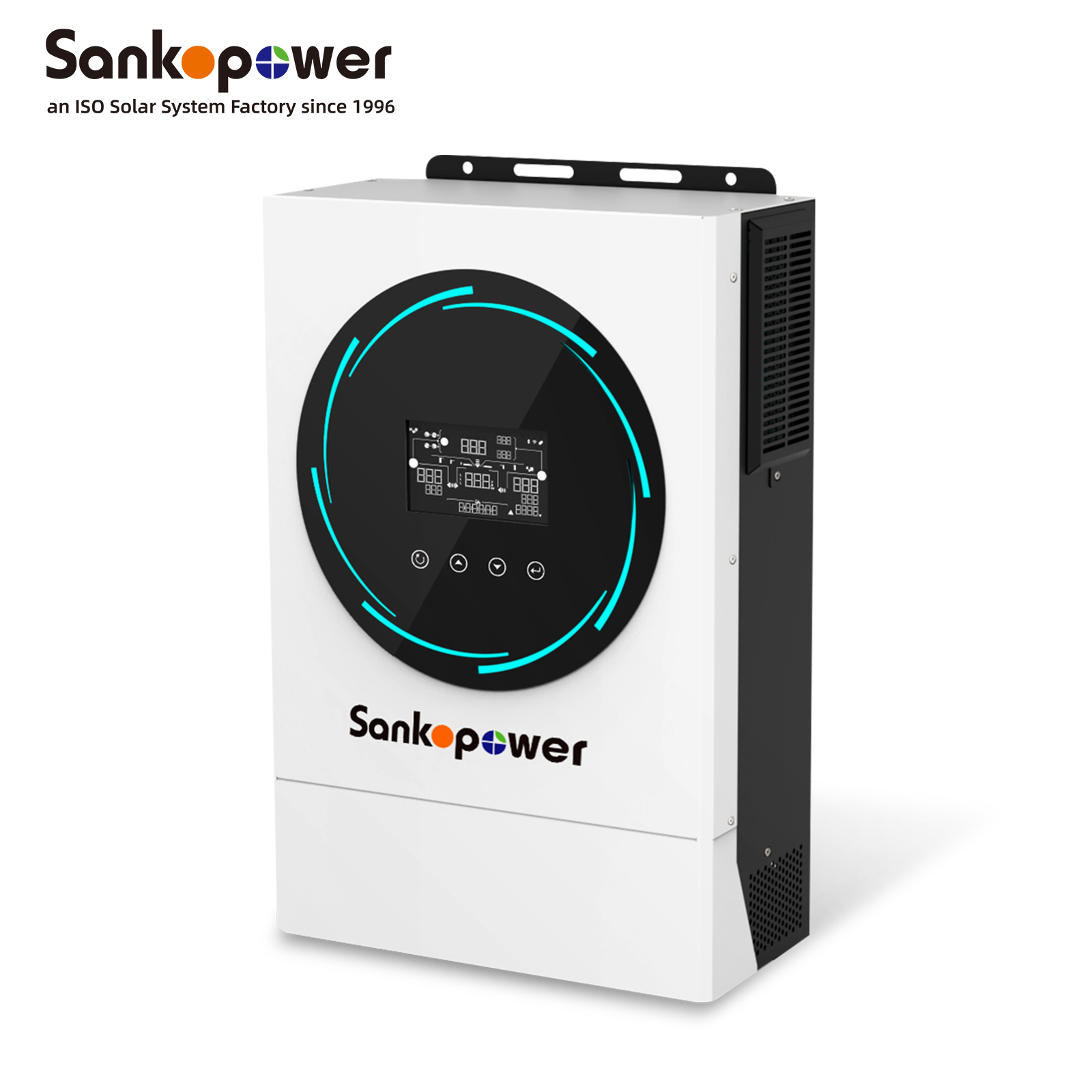

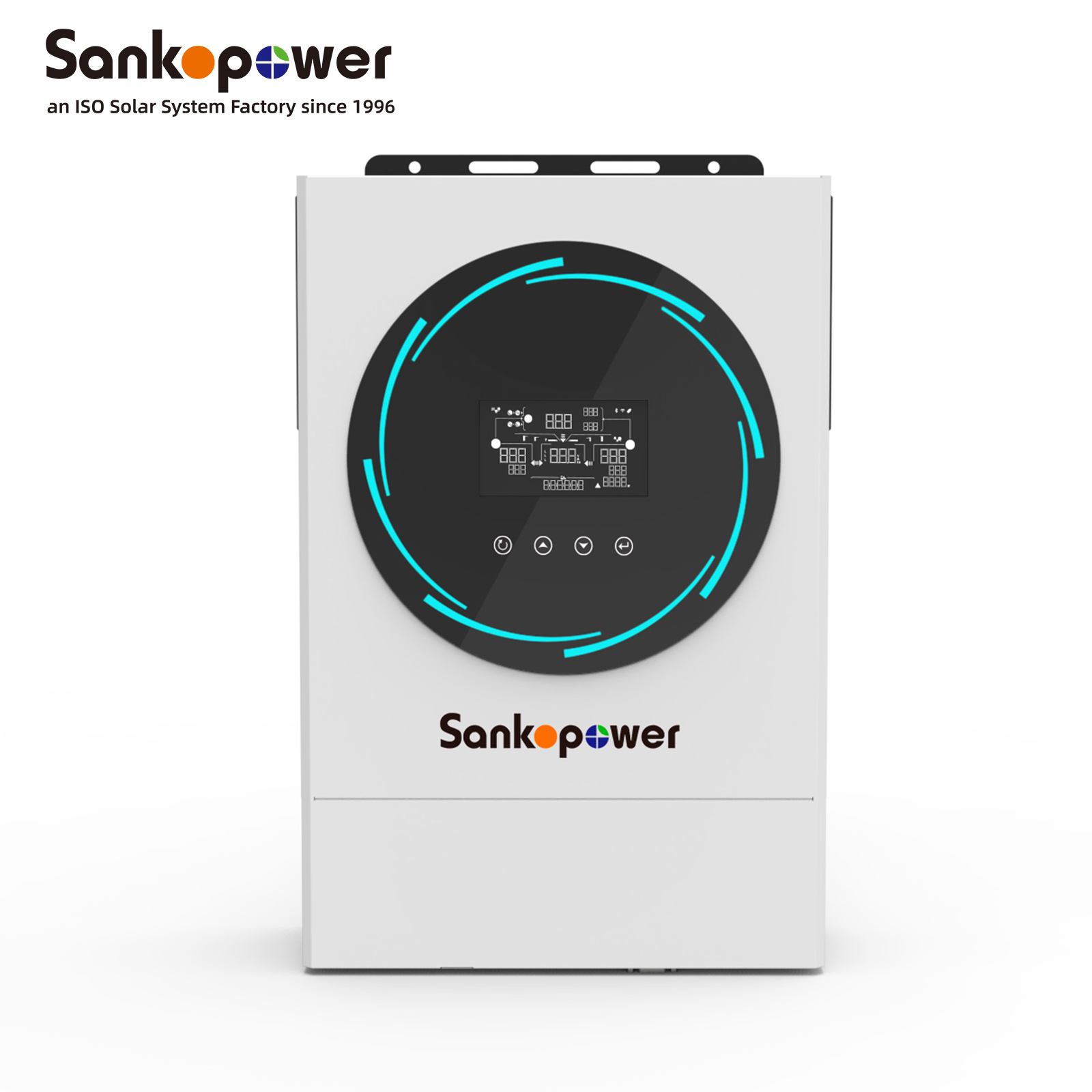

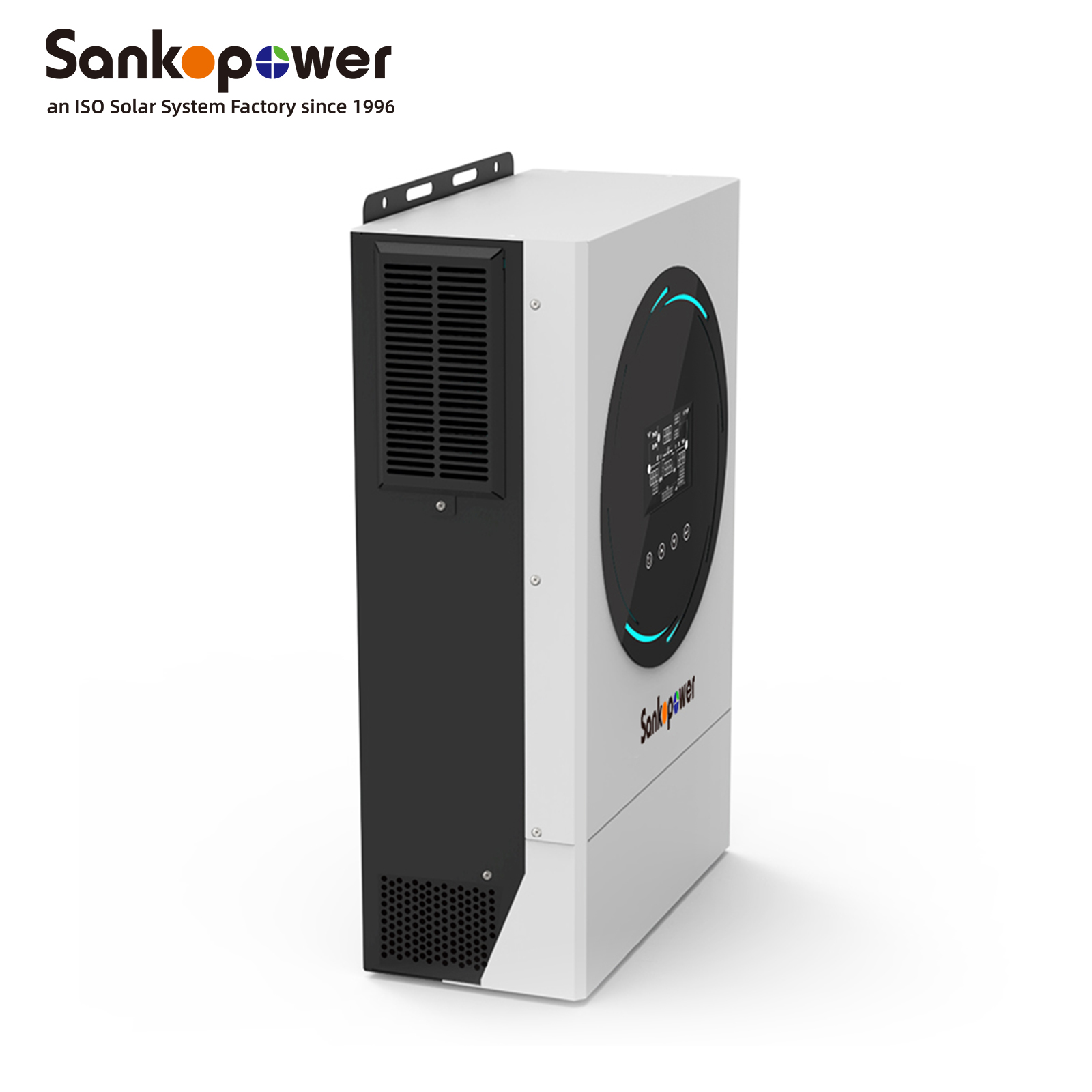

6000W/48V SolarPolo Inverter is a REAL hybrid inverter/charger with multi-function, Off Grid and On Grid solar inverter, Support self-consumption and also can feed into the grid. This On grid/ Off grid solar inverter with 120A MPPT solar charge built-in, Pure Sine Wave, High frequency, With WiFI, can Parallel up to 9 units, with LCD display & touch screen.
6000W/48V SolarPolo Inverter is multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operations
NOTE 1: 6KW Hybrid MPPT Solar Inverter SolarPolo Series is a wide voltage Hybrid inverter. Solar panel input voltage must be higher than 120V so that can start up the solar inverter to work.
NOTE 2: 6KW Hybrid MPPT Solar Inverter SolarPolo Series supports the WIFI function, and have Built-in WIFI (Requires APP)
NOTE 3: 6KW Hybrid MPPT Solar Inverter SolarPolo Series has parallel function but customer have to buy parallel kit separately.
| Model No. | 6KVA /6KW SolarPolo Hybrid Inverter |
| Basical information | |
| Max. PV Input Power | 6000W |
| Rated AC Output Power | 6000W |
| PV Input (DC) | |
| Nominal DC Volt/Max DC Voltage | 360VDC/500VDC |
| Start-up Voltage/Initial Feeding Voltage | 120VDC |
| MPPT Voltage Range | 120-450VDC |
| No. of MPPT Tracker/Max. Input Current | 1/27A |
| AC Input (AC) | |
| AC Start-up Voltage/Auto Restart Volt. | 120Vac-140Vac/180Vac |
| Acceptable Input Voltage Range | 90-280Vac or 170-280Vac |
| Max. AC Input Current | 40A |
| Grid Output in Gri-Tie/ Hybrid Operation (AC) | |
| Nominal Output Volt | 220Vac/ 230Vac/ 240Vac，Single Phase dual AC output |
| Output Voltage Range | 184V-265Vac or 195-253V (Selectable) |
| Nominal Output Current | 26.0A |
| Power Factor | 1 |
| Efficiency | |
| Max. Conversion Efficiency (DC/AC) | 96% |
| Battery Mode Output (AC) | |
| Nominal Output Volt | 230Vac dual AC output+ 1pcs*12Vdc/ 10A max |
| Waveform | Pure sine wave |
| Efficiency(DC to AC) | 93% |
| Battery & Charger | |
| Battery Type Supported | AGM/Lead Acid/GEL/LIFEPO4 Lihitum Battery |
| Nominal Battery Voltage | 48Vdc |
| Max Solar Charge Current | 120A |
| Max AC Charge Current | 120A |
| Max Total Charge Current | 120A |
| Physical | |
| Products Dimension,D X W X H (mm) | 356*471*149 |
| Product Net Weight(kgs) | 13.5 |
| Packing Dimension,D X W X H (mm) | 535*425*224,1PC/CTN |
| Gross Weight(kgs) | 15 |
| Parallel functions Optional | Yes, optional, max 9pcs |
| Communication Interface | RS232,USB,RS485,WIFI |
| Environment | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10℃ to 50℃ |
| Storage Temperature | -15℃ to 60℃ |
| *Product specifications are subject to change without further notice | |

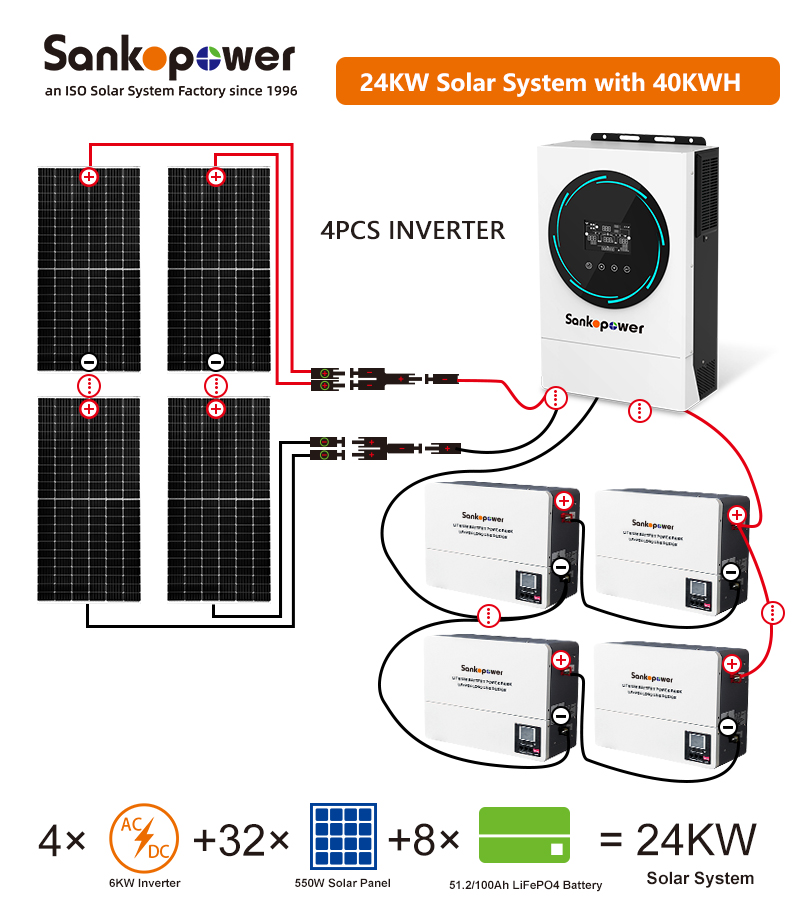

24KW Hybrid Solar Power Home System with 40KWh Battery Storage24KW Solar Power Home System can generate about 66-88KWh power
and solar battery storage is around 40Kwh
This residential solar home system are mostly suitable for high energy users (6-8 people or more).

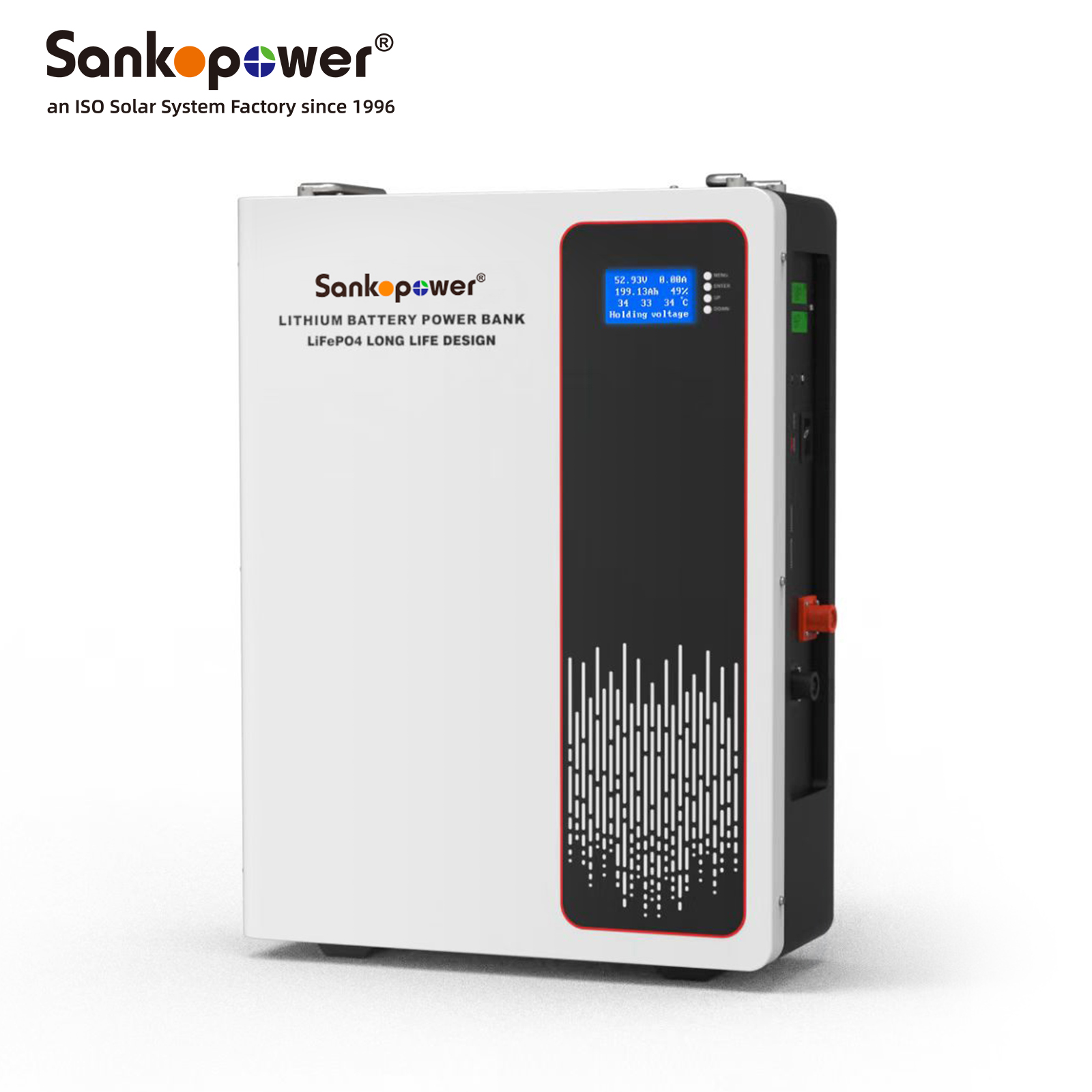

51.2V/200Ah LiFePO4 Solar Lithium Battery (Wall Mounted, 6000 Cycles)Model: Li LBC 51.2V/200Ah-W 6000 Cycles
