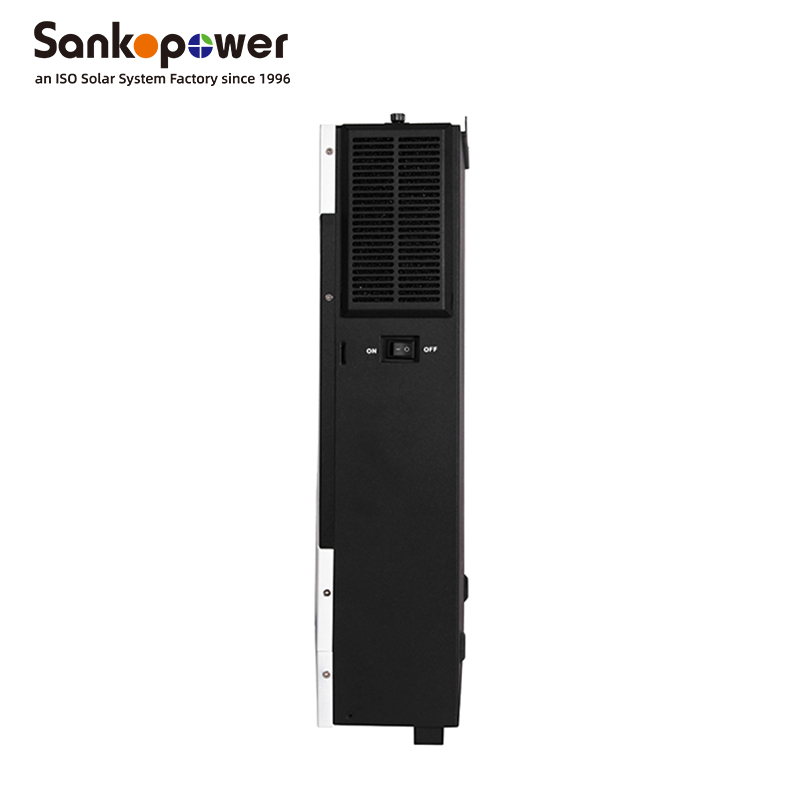

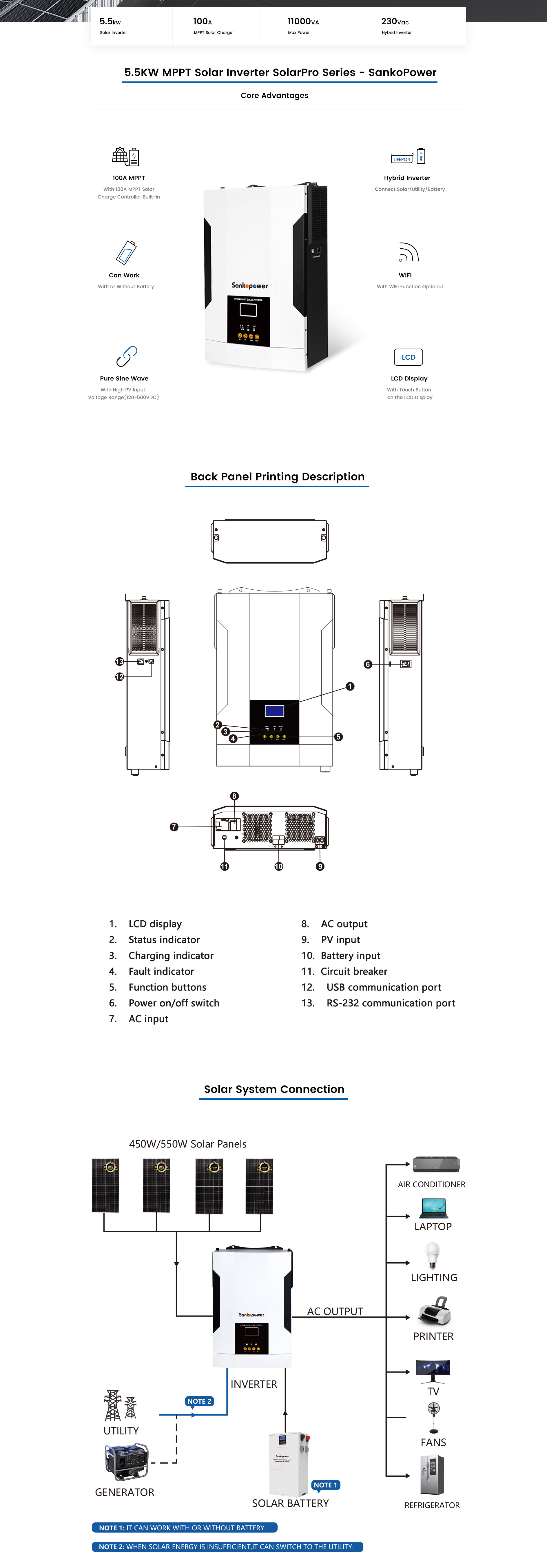

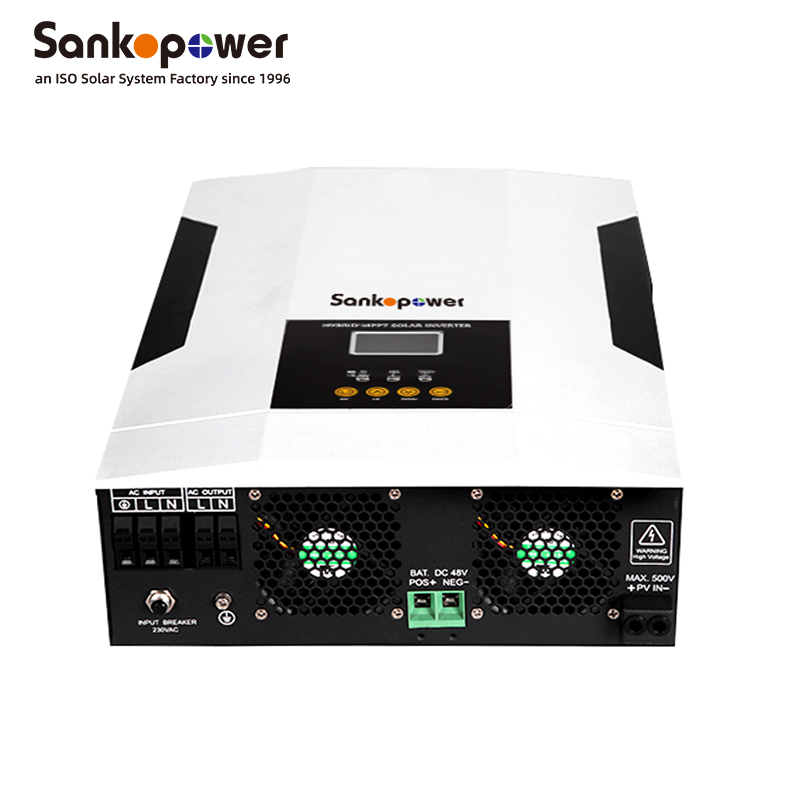

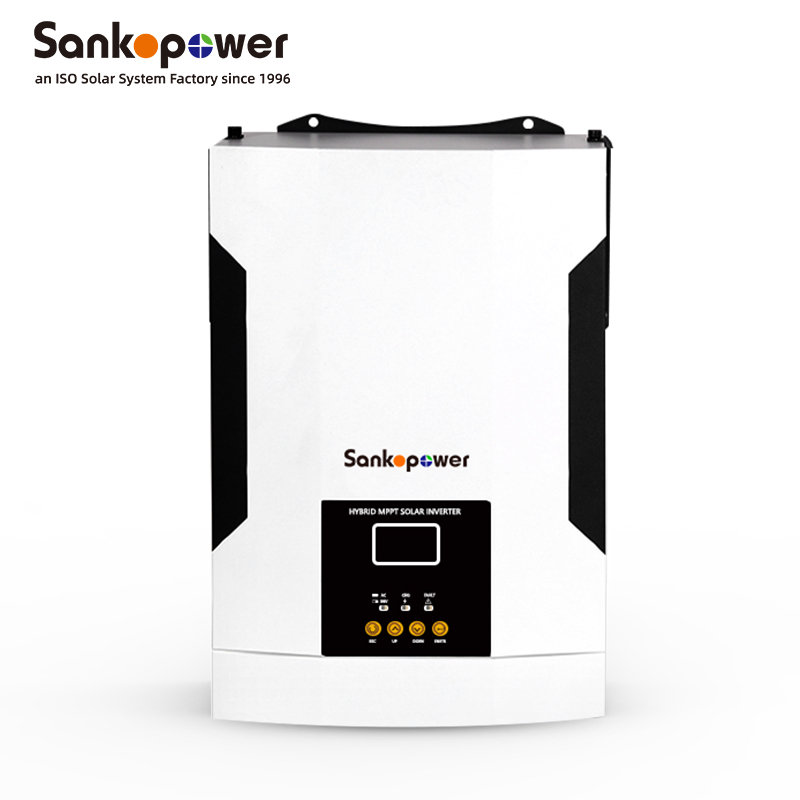

5500VA/5500W Solar Inverter, Off-Grid Solar Inverter, 100A MPPT Built in, 500VDC PV Input 220VAC 48V. This 5500W MPPT Solar Inverter SolarPro Series is a multi-function solar inverter/solar charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support. It is perfect backup power supply for off-grid system like household appliances, power tools, industrial equipment, and electronic audio and video equipment.
NOTE 1: 5500W MPPT Solar Inverter SolarPro Series is a wide voltage solar inverter. Solar panel input voltage must be higher than 120V so that can start up the solar inverter to work.
NOTE 2: 5500W MPPT Solar Inverter SolarPro Series supports the WIFI function, but need to buy the WIFI module connect to APP so that can monitor.
| Inverter Model No. | 3.5KW Inverter SolarPro | 5.5K Inverter SolarPro |
| The rated power | 3500VA/3500W | 5500VA/5500W |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170-280VAC (UPS),90-280VAC (Appliances) | |
| Frequnecy Range | 50Hz/60Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Model) | 230VAC ± 5% | |
| Surge Power | 7000VA | 11000VA |
| Efficiency(Peak) | > 90% | |
| Transfer Time | 10MS (UPS), 20MS (Appliances) | |
| Wave form | Pure sine wave | |
| No load current | 1.0A | 1.1A |
| BATTERY | ||
| Battery voltage | 24VDC | 48VDC |
| Low battery alarming voltage | 22.0VDC | 44.0VDC |
| Low battery cut off protection voltage | 21VDC | 42VDC |
| Low battery recovery voltage | 23.0VDC | 46.0VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 32VDC | 64VDC |
| MPPT SOLAR CHARGER & AC CHARGER | ||
| Maximum PV Array Power | 5000W | 6000W |
| MPPT Range Operation Vol. | 120-450VDC | |
| Maximum PV Array Open Circuit Vol. | 500VDC | |
| Number of MPPT trackers / Max output current | 100A | |
| Maxmum AC Charge Current | 60A | |
| Maxmum Charge Current | 100A | |
| Maxmum Efficiency | 98% | |
| BEST PANEL CONFIGUTATION | ||
| Maximum PV Array Power | 5000W | 6000W |
| Best Panel configuration | 550Wp*7pcs*42V(3850Wp)*in series | 550Wp*8pcs*42V(4400Wp)*in series |
| PHYSICAL | ||
| Products Dimension, D*W*H(mm) | 481mm*313mm*117mm | 481mm*313mm*117mm |
| Packing size, D*W*H(mm) | 543mm*394mm*204mm | 543mm*394mm*204mm |
| Net Weight (kgs) | 9.8Kg | 10.5Kg |
| G.W. kg | 11Kg | 11.7Kg |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Operation Temperature | 0℃-50℃ | |
