256V12.8KWH LiFePO4 Lithium Battery
  • 256V12.8KWH LiFePO4 Lithium Battery
Click the picture to enlarge

256V12.8KWH LiFePO4 Lithium Battery

256V/ 12.8KWH LiFePO4 Lithium Battery High Voltage Series - SankoPower

SankoPower produce and supply solar lithium iron phosphate batteries, which also called solar power bank, solar Lithium battery, LiFePO4 lithium battery pack, LiFePO4 battery storage system. SankoPower is LiFePO4 battery manufacturer speciallizing in customized lithium battery storage solution. SankoPower deep cycle solar batteries include low voltage and high voltage series, wall mounted and modular stacked both.

LBF Series is high voltage modular stacked design solar lithium battery system, 205V/10.24KWH, 256V/12.8KWH, 300V/15.36KWH, 358V/17.92KWH are most popular high voltage battery, this 180V -700V High Voltage Lithium-Ion Battery Pack have long lifespan over 15 years use life, 6000 cycles. The solar battery storage system is for Three Phase off grid/ hybrid solar inverters, and its smart BMS supports communication with different brand inverters.

256V/ 12.8KWH LiFePO4 Lithium Battery - SankoPower Brief

256V/ 12.8KWH LiFePO4 Lithium Battery are high-voltage lithium battery modules specially developed for energy storage system (ESS), with lithium iron phosphate batteries as the core, equipped with high-performance battery management system (BMS), which make it high safety, high energy density, long cycle life, etc. Based on the application requirements of home energy storage batteries, 256V/ 12.8KWH LiFePO4 Lithium Battery has been uniquely designed and innovated in compatibility, energy density, power density, safety, operability, and product appearance, which can bring best application experience to users.

The High voltage LFP battery LBF series are high-voltage energy storage battery adopts a modular design, divided into master control module and slave control module. The 256V/ 12.8KWH LiFePO4 Lithium Battery LBF Series have highest flexibility for the installation of cabinet, rack and container structures, and 256V/ 12.8KWH LiFePO4 battery provide customers with the flexibility of deploying an energy storage system at any node in this field supports the spontaneous self-use of PV solar, storage of excess electricity, adjustment of peak and valley electricity prices, peak-shift power consumption, emergency power backup functions, ect.

SankoPower LBF High Voltage LIFEPO4 Lithium Battery Application

  • Lifespan more than 15 years
  • Modular design, high energy density
  • Support multiple modules in series, up to 12 modules can be connected in series;
  • Wide voltage range design, voltage range from 100Vdc to 1000Vdc
  • Support maximum charge and discharge at 1C
  • In order to ensure the normal operation of the ESS in the high-cold area, the battery pack has been added an intelligent heating design
  • An independent firefighting system is designed in each module to ensure the safety of use under the most extreme conditions
  • High-performance fuses, relays, and circuit breakers integrated in the system promise the safety of the system.
  • Install against the wall, with side cable outlet, convenient for maintenance
  • DIY design, save labor cost
  • Multiple communication interfaces: RS485, RS232, CAN
  • Highly compatible BMS, the protocol built-in compatible with many well-known brand storage inverters in the industry;
  • Certification: TUV, CE, UN38.3, MSDS etc

256V/ 12.8KWH High Voltage LiFePO4 Lithium Battery Pack

Core Advantages

Models

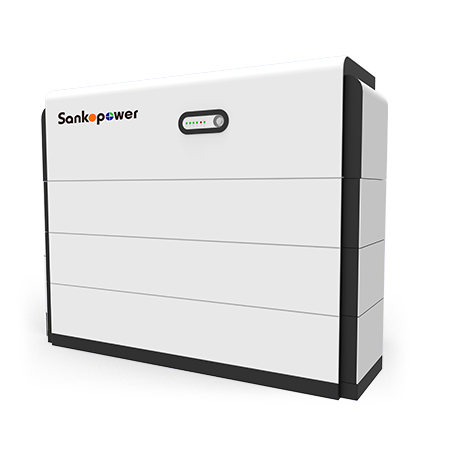

  • 205V 10.24KWH LiFePO4 Lithium Battery
    - Lifespan more than 15 years
    - Deep Cycle Battery 6000 cycles
    - Modular design, high energy density
    - Install against the wall, with side cable outlet
    - Wide voltage range design, voltage range from 100 Vdc to 1000 VdcRead More

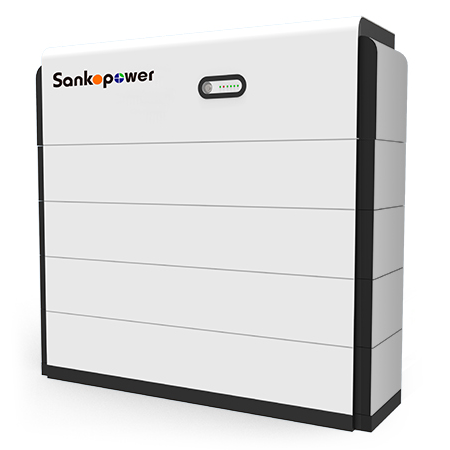

  • 256V 12.8KWH LiFePO4 Lithium Battery
    - Lifespan more than 15 years
    - Deep Cycle Battery 6000 cycles
    - Modular design, high energy density
    - Install against the wall, with side cable outlet
    - Wide voltage range design, voltage range from 100 Vdc to 1000 VdcRead More

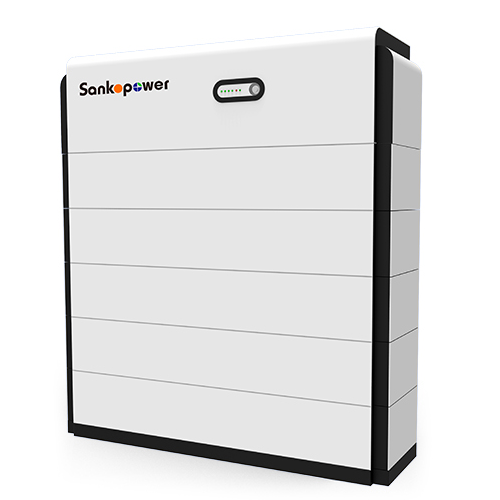

  • 307V 15.36KWH LiFePO4 Lithium Battery
    - Lifespan more than 15 years
    - Deep Cycle Battery 6000 cycles
    - Modular design, high energy density
    - Install against the wall, with side cable outlet
    - Wide voltage range design, voltage range from 100 Vdc to 1000 VdcRead More

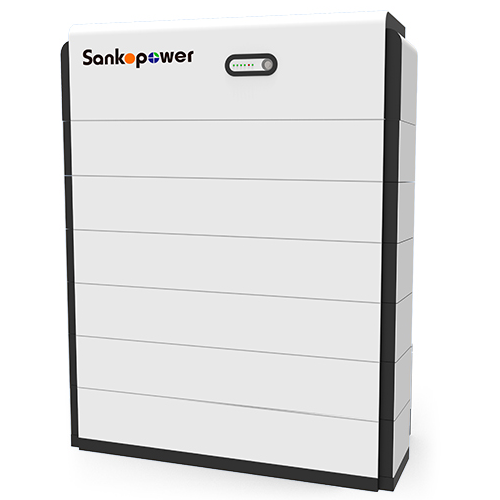

  • 358V 17.92KWH LiFePO4 Lithium Battery
    - Lifespan more than 15 years
    - Deep Cycle Battery 6000 cycles
    - Modular design, high energy density
    - Install against the wall, with side cable outlet
    - Wide voltage range design, voltage range from 100 Vdc to 1000 VdcRead More

256V 12.8KWH High Voltage LiFePO4 Lithium Battery Pack-SankoPower Brief

256V/ 12.8KWH LiFePO4 Lithium Battery are high-voltage lithium battery modules specially developed for energy storage system (ESS), with lithium iron phosphate batteries as the core, equipped with high-performance battery management system (BMS), which make it high safety, high energy density, long cycle life, etc. Based on the application requirements of home energy storage batteries, 256V/ 12.8KWH LiFePO4 Lithium Battery has been uniquely designed and innovated in compatibility, energy density, power density, safety, operability, and product appearance, which can bring best application experience to users.

The High voltage LFP battery LBF series are high-voltage energy storage battery adopts a modular design, divided into master control module and slave control module. The 256V/ 12.8KWH LiFePO4 Lithium Battery LBF Series have highest flexibility for the installation of cabinet, rack and container structures, and 256V/ 12.8KWH LiFePO4 battery provide customers with the flexibility of deploying an energy storage system at any node in this field supports the spontaneous self-use of PV solar, storage of excess electricity, adjustment of peak and valley electricity prices, peak-shift power consumption, emergency power backup functions, ect.

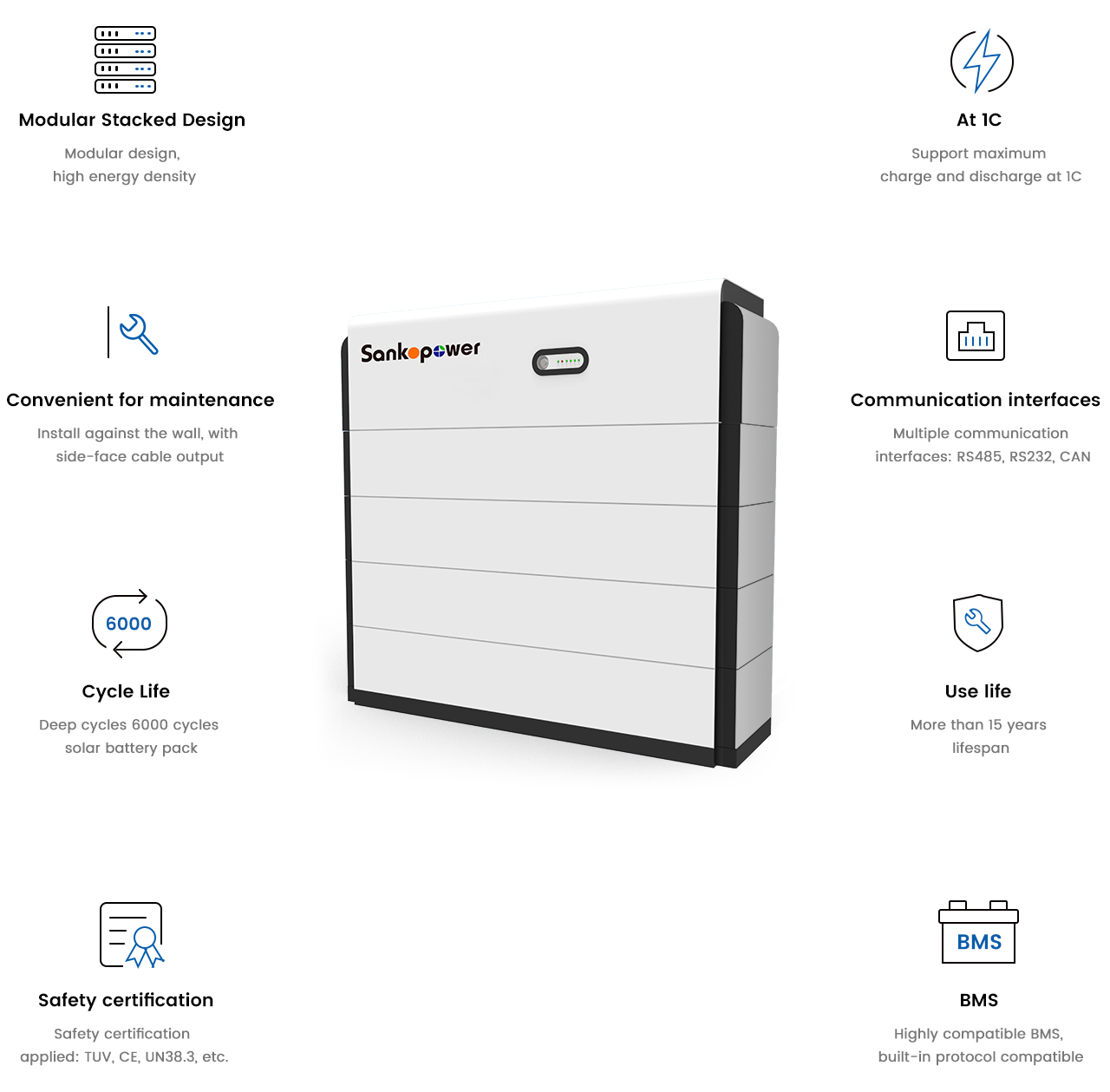

256V 12.8KWH High Voltage LiFePO4 Lithium Battery Pack-Feature

  1. Lifespan more than 15 years
  2. Modular design, high energy density
  3. Support multiple modules in series, up to 12 modules can be connected in series;
  4. Wide voltage range design, voltage range from 100Vdc to 1000Vdc
  5. Support maximum charge and discharge at 1C
  6. In order to ensure the normal operation of the ESS in the high-cold area, the battery pack has been added an intelligent heating design
  7. An independent firefighting system is designed in each module to ensure the safety of use under the most extreme conditions
  8. High-performance fuses, relays, and circuit breakers integrated in the system promise the safety of the system.
  9. Install against the wall, with side cable outlet, convenient for maintenance
  10. DIY design, save labor cost
  11. Multiple communication interfaces: RS485, RS232, CAN
  12. Highly compatible BMS, the protocol built-in compatible with many well-known brand storage inverters in the industry;
  13. Certification: TUV, CE, UN38.3, MSDS etc

256V12.8KWH LiFePO4 Lithium Battery - SankoPower Features

SPECIFICATION High Voltage Lithium Battery
Model 7.68KWh 10.24KWh 12.8KWh 15.36KWh 17.92KWh 20.48KWh 23.04KWh 25.6KWh 28.16KWh 30.72KWh
Technology Datas
Battery Model Number in Series 3 4 5 6 7 8 9 10 11 12
Rating Energy(kwh) 7.68KWh 10.24KWh 12.8KWh 15.36KWh 17.92KWh 20.48KWh 23.04KWh 25.6KWh 28.16KWh 30.72KWh
Rating Voltage(V) 153.6V 204.8V 256.0V 307.2V 358.4V 409.6V 460.8V 521.0V 563.2V 614.4V
Usable Energy(kwh) 6.9KWh 9.2KWh 11.52KWh 13.8KWh 16.13KWh 18.4KWh 20.7KWh 23KWh 25.3KWh 27.6KWh
Rating Capacity 50Ah
Voltage Range(V) (44.8~57.6)×N (N=Battery module number in series)
Max. Change Current(A) 25A( recommended )/50A(Max.)
Max. Discharge Current(A) 25A( recommended )/50A(Max.)
LifeCycle Times 80% DOD,>6000 Times,SOC>70%
Communication Protocol RS485/RS232/CAN2.0.
Protection Function Over-voltage, under-voltage, Over-temperature, Low-temperature, Short-circuit
Working Conditions
Installation Position indoor
Working Temperature Range -10℃~50℃
The Best Working Temperature Range 20℃~30℃
Storage Temperature Range -30℃~60℃
Protection IP20
Working Humidity 5%-95%(non-condensing)
Altitude Required ≤2000m
Cooling Natural Cooling
Size(W×D×H, mm) 700*300*(420+ 130*(N-2)N=Battery module number in series
Weight(kg) 52kg+28kg*(N-2; 2
Certification TUV、CE、UN38.3
