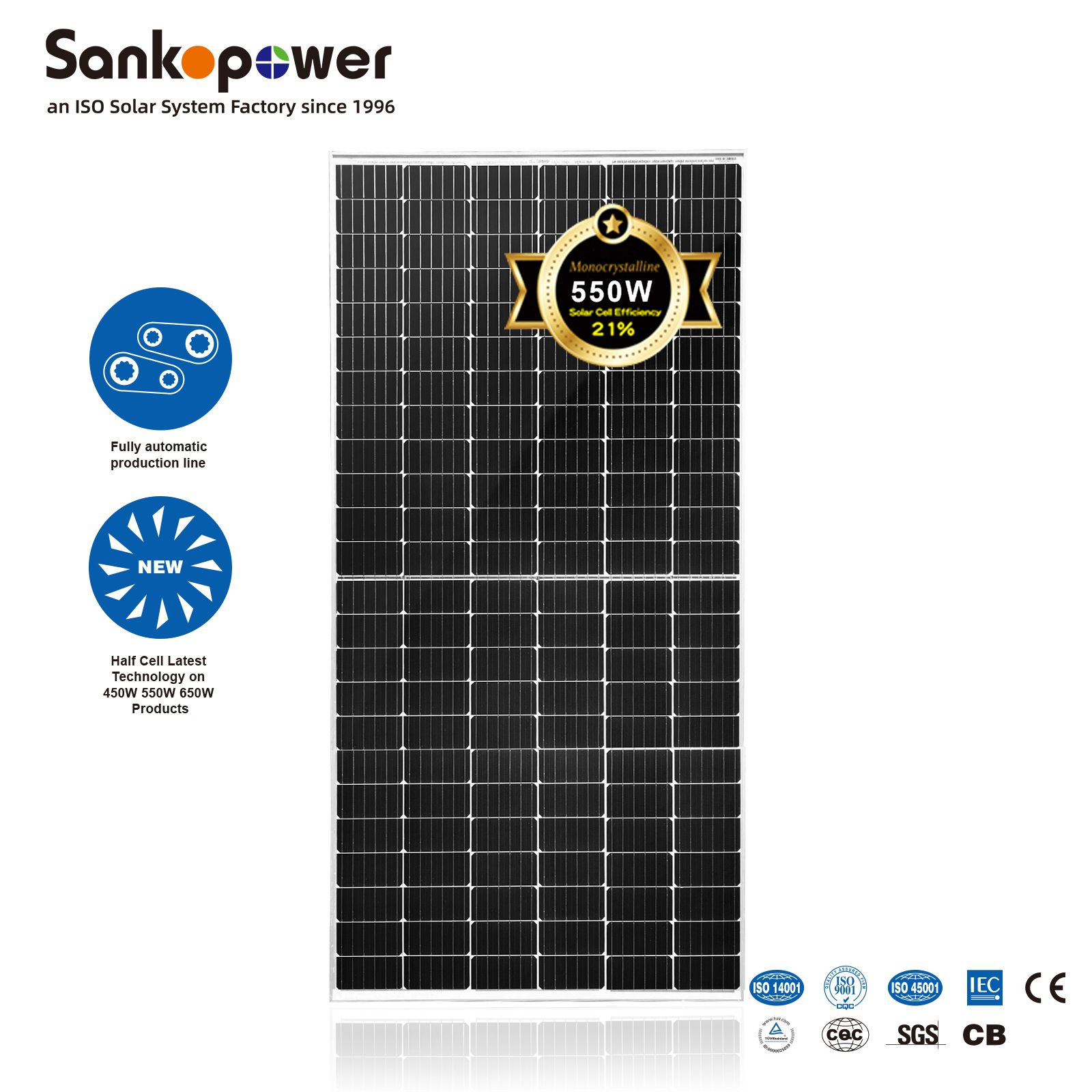

525W-550W Mono Solar Panels Half Cut 144 Cell Photovoltaic Module, 10BB Half Cut solar panel factory - 144 cells 540W, 545W, 550W, 555W solar panel for residential and commercial solar power station both.
Sankopower is a solar panel PV module factory and solar panel supplier in China. 540W 550W Half Cell Mono Solar Panel is the most popular solar panel in market, high power with high efficiency. 540W 550W mono solar panels are best choice for ground mounting power plant or solar plant.
With 182mm Cells Mono PERC with MBB & Half-cut latest technology, Sankopower 540W 550W Half Cell Mono Solar Panel Power Range 525W 530W 535W 540W 545W 550W. Sanko power have standard industry module size, compatible with other brands modules and inverters, more economic for changing and maintenance. Thanks to the Half-Cut technology, the cell internal resistance is reduced, which provides an additional module power even while shading, cloudy weather, and in low light conditions.
| Product Name | Half-Cell | Solar Cell Type | Wattage | Silicon Type | |
| Model No. Explanation | PVSK-550 | 144 PCS | 182*182mm | 550W | M: Monocrystalline |
Remark: PVSK-550, 550W Half Cell Mono Solar Panel is the most common model.
Solar Photovoltaic Modules, Solar PV Modules, Solar Modules, 525W 530W 535W 540W 545W 550W Monocrystalline high efficient sillicon cells solar panels

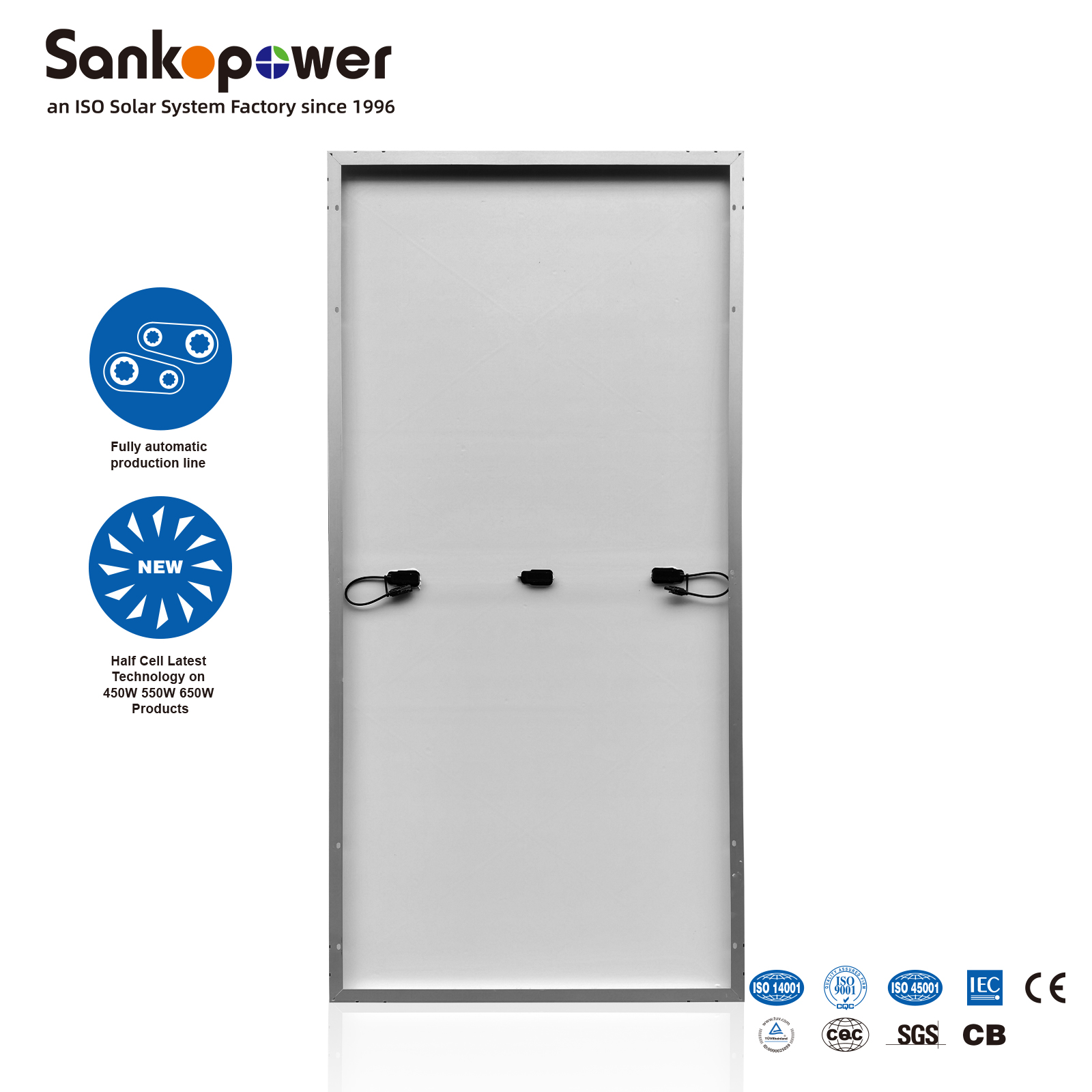

| 550W Half Cell Mono Solar Panel Mechanical Parameters | |
| Cell Orientation | 144 (6X24) |
| Junction Box | IP68, three diodes |
| Output Cable | 4mm2, positive 400 / negative 200mm length can be customized |
| Glass | Single glass, 3.2mm coated tempered glass |
| Frame | Anodized aluminum alloy frame |
| Weight | 27.2kg |
| Dimension | 2256 x 1133 x 35mm |
| Packaging | 31pcs per pallet/ 155pcs per 20' GP/620pcs per 40' HC |
| 550W Half Cell Mono Solar Panel Electrical Characteristics | ||||||
| STC: AM1.5 1000W/m2 25°C Test uncertainty for Pmax: ±3% | ||||||
| Power Class | 525 | 530 | 535 | 540 | 545 | 550 |
| Maximum Power (Pmax/W) | 525 | 530 | 535 | 540 | 545 | 550 |
| Open Circuit Voltage (Voc/V) | 49.05 | 49.2 | 49.35 | 49.5 | 49.65 | 49.8 |
| Short Circuit Current (Isc/A) | 13.65 | 13.71 | 13.78 | 13.85 | 13.92 | 13.98 |
| Voltage at Maximum Power (Vmp/V) | 41.2 | 41.35 | 41.50 | 41.65 | 41.8 | 41.95 |
| Current at Maximum Power (Imp/A) | 12.75 | 12.85 | 12.90 | 12.97 | 13.04 | 13.12 |
| Module Efficiency)%) | 20.5 | 20.7 | 20.9 | 21.1 | 21.3 | 21.5 |
| 550W Half Cell Mono Solar Panel Operating Parameters | |
| Operational Temperature | -40°C 〜+85°C |
| Power Output Tolerance | 0 〜+5W |
| Voc and Isc Tolerance | ±3% |
| Maximum System Voltage | DC1500V(IEC/UL) |
| Maximum Series Fuse Rating | 25A |
| Nominal Operating Cell Temperature | 45±2°C |
| Protection Class | Class II |
| Fire Rating | UL type 1 or2 |
| 550W Half Cell Mono Solar Panel Mechanical Loading | |
| Front Side Maximum Static Loading | 5400Pa |
| Rear Side Maximum Static Loading | 2400Pa |
| Hailstone Test | 25mm Hailstone at the speed of 23m/s |
| 550W Half Cell Mono Solar Panel Temperature Ratings (STC) | ||
| Temperature Coefficient of Isc | +0.048%/°C | |
| Temperature Coefficient of Voc | -0.270%/°C | |
| Temperature Coefficient of Pmax | -0.350%/°C | |
Warning:Read the installation and User Manual in its entirety before handing,installing,and operation smart Solar modules.
Note:This publiccation summarizes product warranty and Specications which are subject to change without notice.
