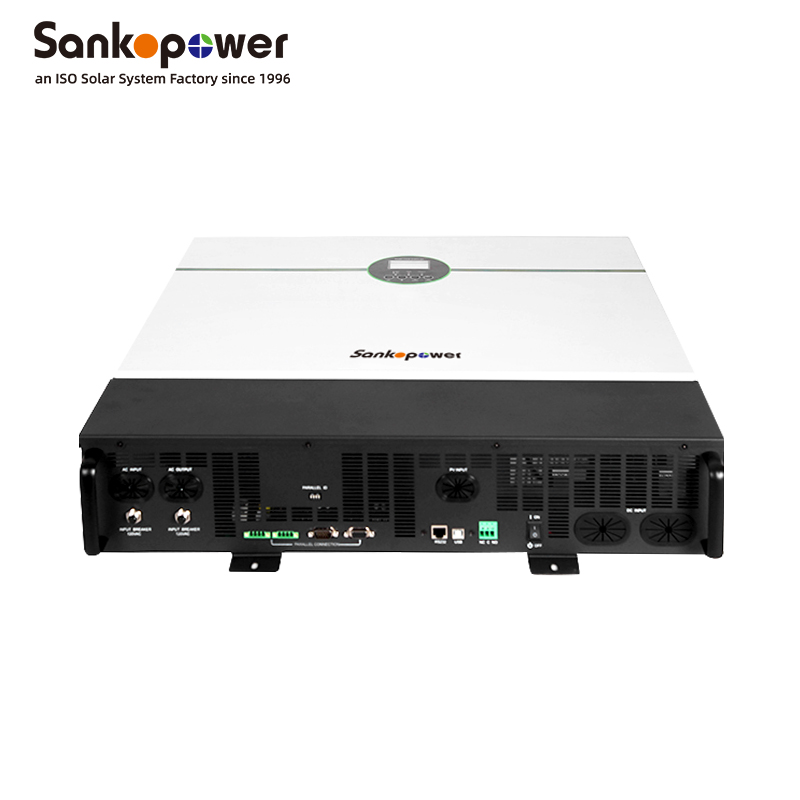

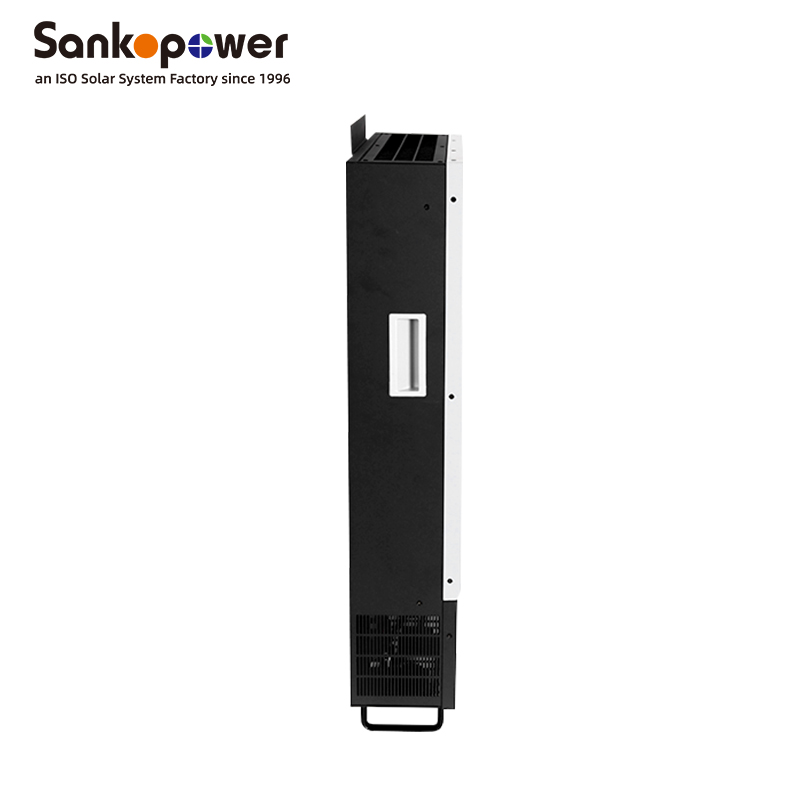

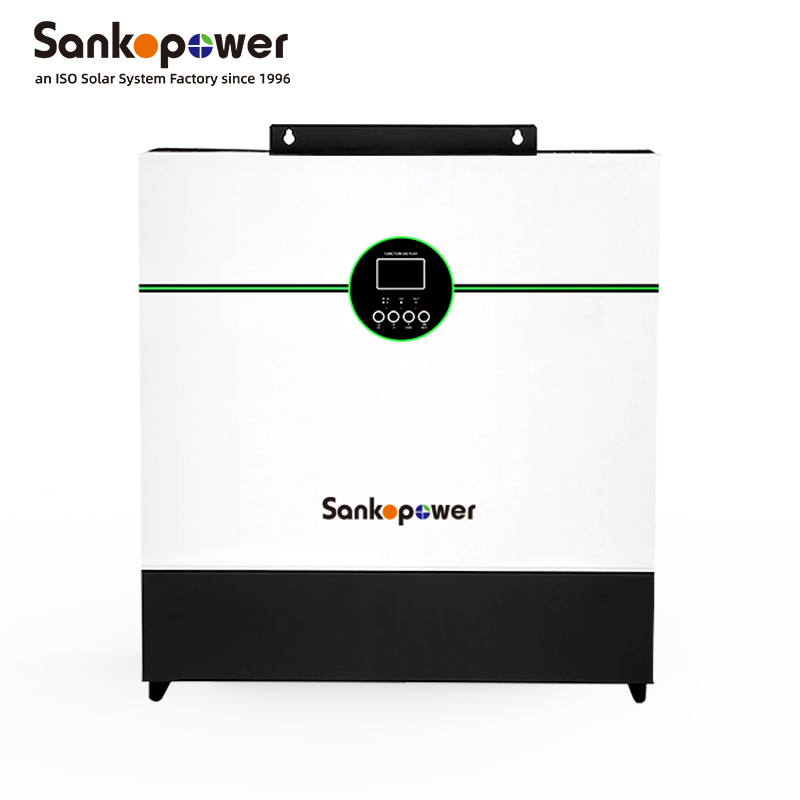

5KW MPPT Solar Inverter SolarSee is a 5000VA/5000W Off grid solar Inverter, 110Vac 120Vac MPPT Solar Inverter, 2pcs 80A MPPT Solar Charger built in, 145VDC PV Input 120VAC 24V, with WiFi，with Parallel Function up to 3pcs. This inverter is a multi-function solar inverter/solar charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support.
NOTE 1: 5000W MPPT Solar Inverter SolarSee Series supports the WIFI function, and have Built-in WIFI (Requires APP)
NOTE 2: 5000W MPPT Solar Inverter SolarSee Series has parallel function, but customer need to buy parallel kit separately.
| TECHNICAL PARAMETER | ||
| Model no. | SolarSee 3K 120VAC Inverter | SolarSee 5K 120VAC Inverter |
| The rated power | 3000VA/2400W | 5000VA/5000W |
| INPUT | ||
| Voltage | 120 VAC | |
| Selectable Voltage Range | 95-140VAC (UPS),65-140VAC (Appliances) | |
| Frequnecy Range | 50Hz/60Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Model) | 120VAC ± 5% | |
| Surge Power | 4000VA | 6000VA |
| Power factor | 0.8 | 1.0 |
| Efficiency(Peak) | > 90% | > 90% |
| Transfer Time | 10ms (UPS), 20ms (Appliances) | 10ms (UPS), 20ms (Appliances) |
| Wave form | Pure sine wave | Pure sine wave |
| No load current | 2.0A | 1.5A |
| BATTERY | ||
| Battery voltage | 24VDC | 48VDC |
| Low battery alarming voltage | 22.0VDC | 44.0VDC |
| Low battery cut off protection voltage | 21VDC | 42.0VDC |
| Low battery recovery voltage | 23.0VDC | 46.0VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 31VDC | 60VDC |
| MPPT SOLAR CHARGER & AC CHARGER | ||
| Maximum PV Array Power | 2000W | 3840W |
| MPPT Range Operation Vol | 30-115VDC | 60-115VDC |
| Maximum PV Array Open Circuit Vol. | 145VDC | 145VDC |
| Standby Power Consumption | 48W | 72W |
| Number of MPPT trackers / Max output current | 1/ 1*80A | 2/ 2*80A |
| Maxmum AC Charge Current | 60A | 60A |
| Maxmum Charge Current | 140A | 220A |
| Maxmum Efficiency | 95% | |
| BEST PANEL CONFIGUTATION | ||
| Max. generated from solar charger | 80Amp, 2000W | 2*80Amp, 7680W |
| Best Panel configuration | 550Wp*2pcs*42V(1100Wp)*2parallel（2200Wp） | 550Wp*2pcs*42V(1100Wp)*3parallel（3300Wp） |
| PARALLEL CONNECTION | ||
| Max qty for parallel connection | Max 6PCS | Max 3PCS |
| PHYSICAL | ||
| Products Dimension, D*W*H(mm) | 465mm*303mm*130mm | 670.5mm*625mm*157mm |
| Packing size, D*W*H(mm) | 528mm*376mm*205mm | 788mm*710mm*241mm |
| Net Weight (kgs) | 9.7Kg | 26.4Kg |
| G.W. kg | 11.0Kg | 32.75Kg |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Operation Temperature | 0℃-50℃ | |
* Typical transfer time for parallel operation is 30ms.
* Product specifications are subject to change without further notice
