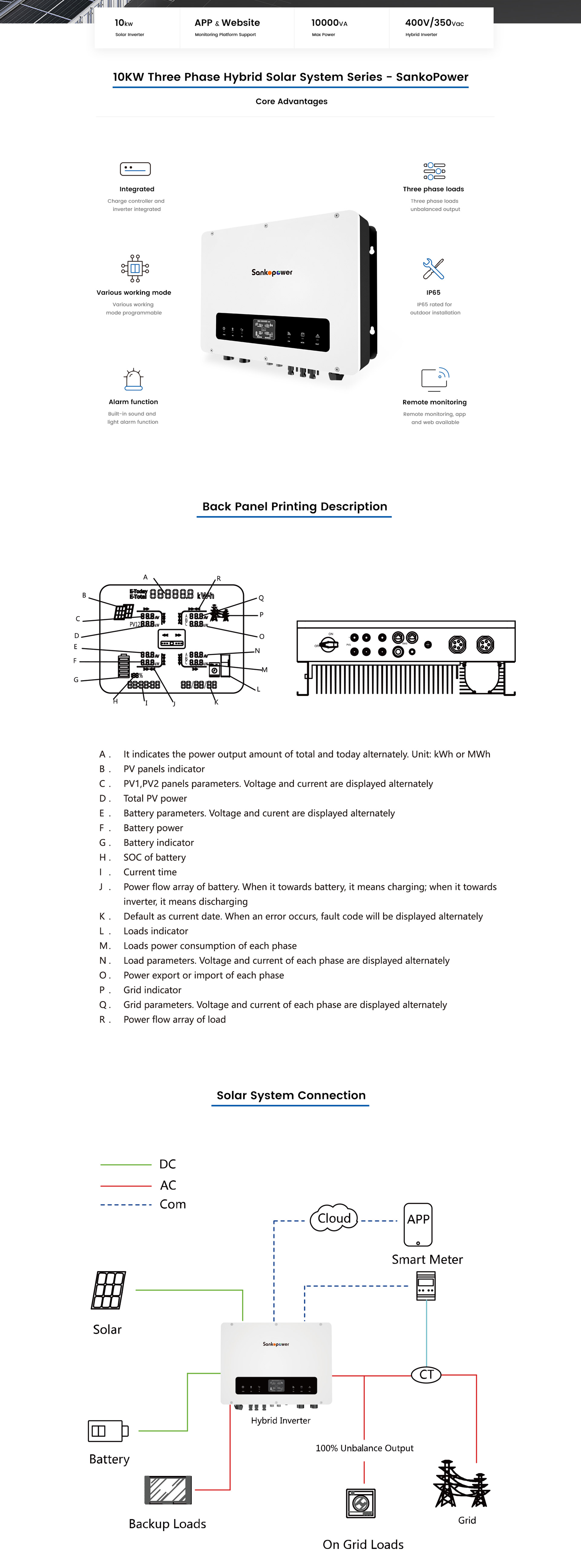

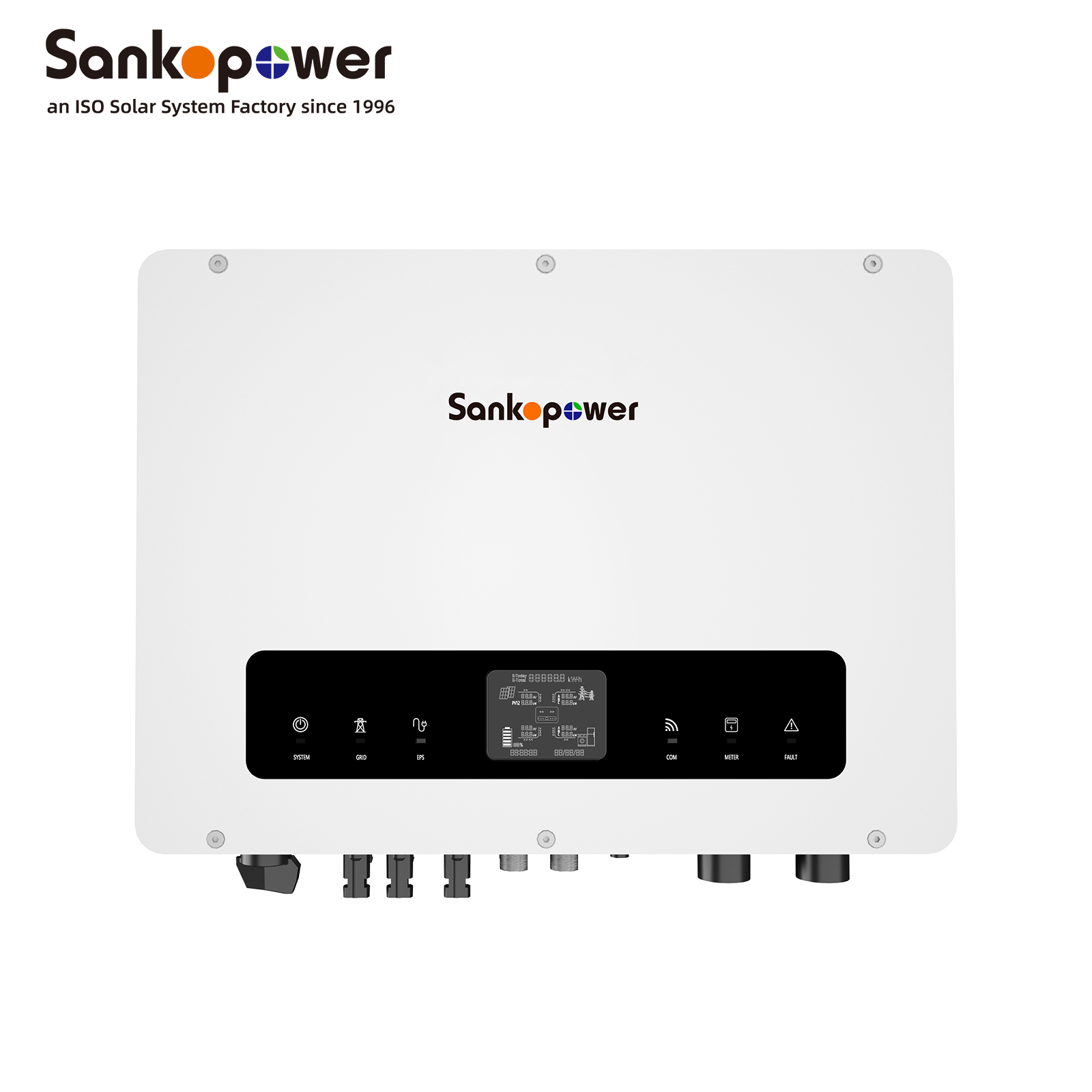

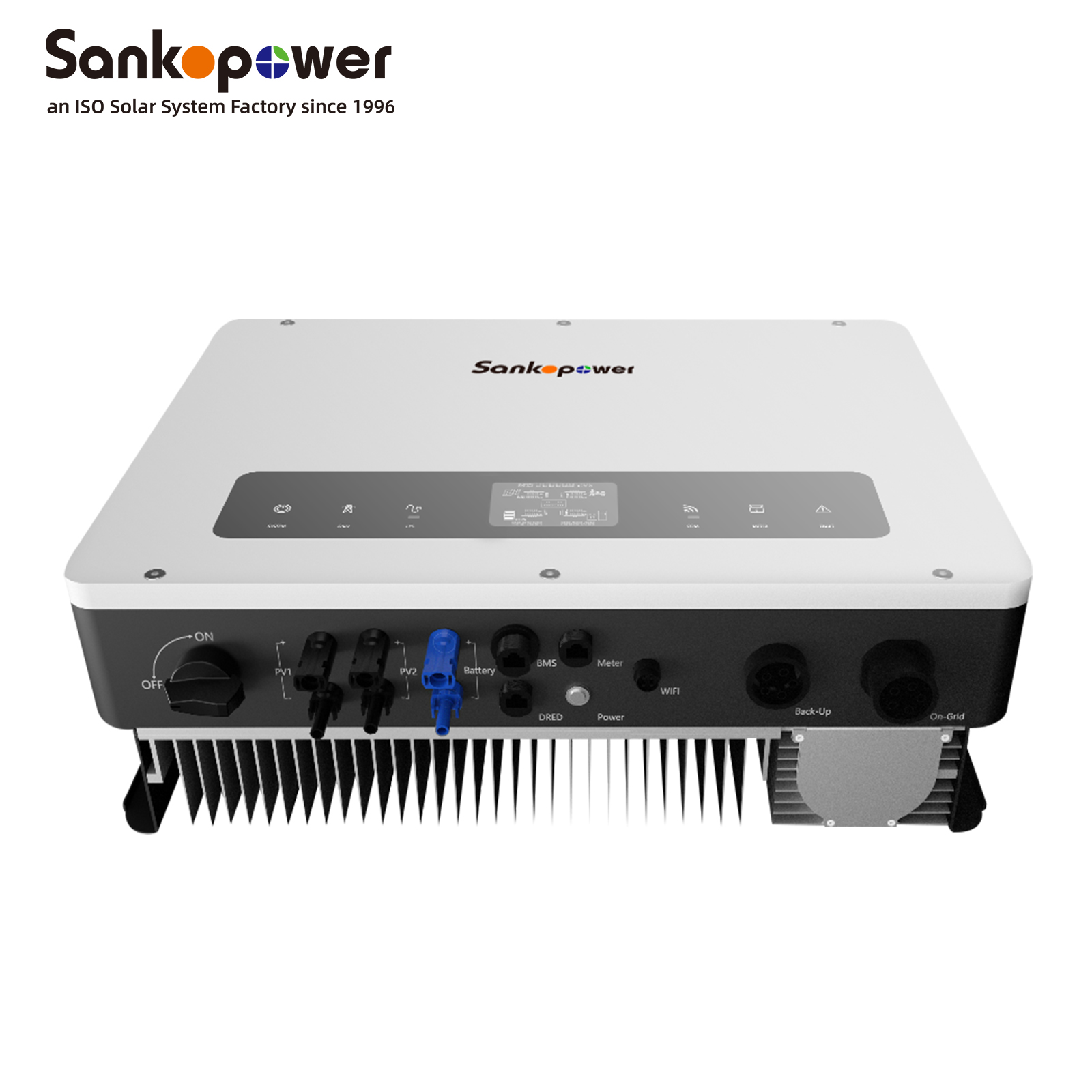

SankoPower 10KW Hybrid Three Phase Residential Solar Inverter, Hybrid storage inverter for self-consumption increase, Charge controller and inverter integrated, support three phase loads unbalanced output, with max DC power 11500W, with 2 pcs MPPT trackers built-in, 850VDC Max PV Input, 22KW Max PV input power. Three phase solar energy storage inverter 10KW-3Phase can be used for both on grid and off grid PV systems, it integrates controller and inverter. During the daytime, the PV array generates electricity which according to set up, can work under different modes providing power either to the loads, or to the grid or charge the battery. The battery can be charged either by PV power or by grid, the power stored in the battery can be released whenever the loads require it. Moreover, the inverter can give three phase unbalanced output accroding to set up, to make a most flexible power solution. Especially suitable for CZ/Poland.
| MODEL | 4KW | 5KW | 6KW | 8KW | 10KW | 12KW |
| Input(DC) | ||||||
| Max DC power | 5500W | 6500W | 7500W | 9500W | 11500W | 13200W |
| Max DC voltage | 1000Vd.c. | |||||
| MPPT voltage range | 200…850Vd.c. | |||||
| Max input current/per string | 13Ax2 | |||||
| Number of MPP trackers | 2 | |||||
| Number of input string | 2 | |||||
| Battery Input | ||||||
| Battery Type | Li-Lon | |||||
| Battery voltage range | 180-700V | |||||
| Maximum charge/discharge current | 25/25A | |||||
| Charge strategy for Li-lon Battery | Self-adaptation to BMS | |||||
| Output(AC) | ||||||
| AC nominal power | 4000VA | 5000VA | 6000VA | 8000VA | 10000VA | 12000VA |
| Max AC apparent power | 5000VA | 5000VA | 7000VA | 8800VA | 11000VA | 13200VA |
| Max output current | 8A | 10A | 12A | 15A | 17A | 20A |
| Nominal AC output | 50/60 Hz ; 400/350 | |||||
| AC output range | 45/55 Hz; 280~490 Vac (Adj) | |||||
| Power factor | 0.8 leading ..0.8laging | |||||
| Harmonics factor | <3% | |||||
| Grid type | 3W/N/PE | |||||
| Three-phase unbalance output | 0 ~100% | 0 ~100% | 0 ~100% | 0 ~100% | 0 ~100% | 0 ~80% |
| AC Output (Back-up) | ||||||
| Max AC apparent power | 4000VA | 5000VA | 6000VA | 8000VA | 10000VA | 10000VA |
| Norminal Output Voltage | 400/380 V | |||||
| Norminal Output Frequency | 50/60 HZ | |||||
| Output THDV (@Liuear Load) | <3% | |||||
| Efficiency | ||||||
| Maximum conversion efficiency | 98.0% | 98.0% | 98.2% | 98.2% | 98.2% | 98.2% |
| European efficiency | 97.3% | 97.3% | 97.5% | 97.5% | 97.5% | 97.5% |
| MPPT efficiency | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% |
| Safety and protection | ||||||
| DC reverse-polarity protection | yes | |||||
| DC breaker | yes | |||||
| DC/AC SPD | yes | |||||
| Leakage current protection | yes | |||||
| Insulation impedance detection | yes | |||||
| Residual Current protection | yes | |||||
| Output short circuit protection | yes | |||||
| Battery reverse connection protection | yes | |||||
| General Parameters | ||||||
| Dimension (W/H/D) | 548*444*184mm | |||||
| Weight | 27 kg | |||||
| Operating temperature range | -25 °C ... +60 °C | |||||
| Degree of protection | IP65 | |||||
| Cooling concept | Natural convection | |||||
| Topology | Transformerless | |||||
| Display | LCD | |||||
| Humidity | 0-95%, no condensation | |||||
| Communcation | GPRS/WIFI(Optional) | |||||
| BMS communication | CAN/RS485 | |||||
| Meter communication | RS485 | |||||
| General Certifications | ||||||
| CQC,VDE-AR-N4105,VDE0126-1-1 ,AS4777,IEC61727,IEC62116 | ||||||
