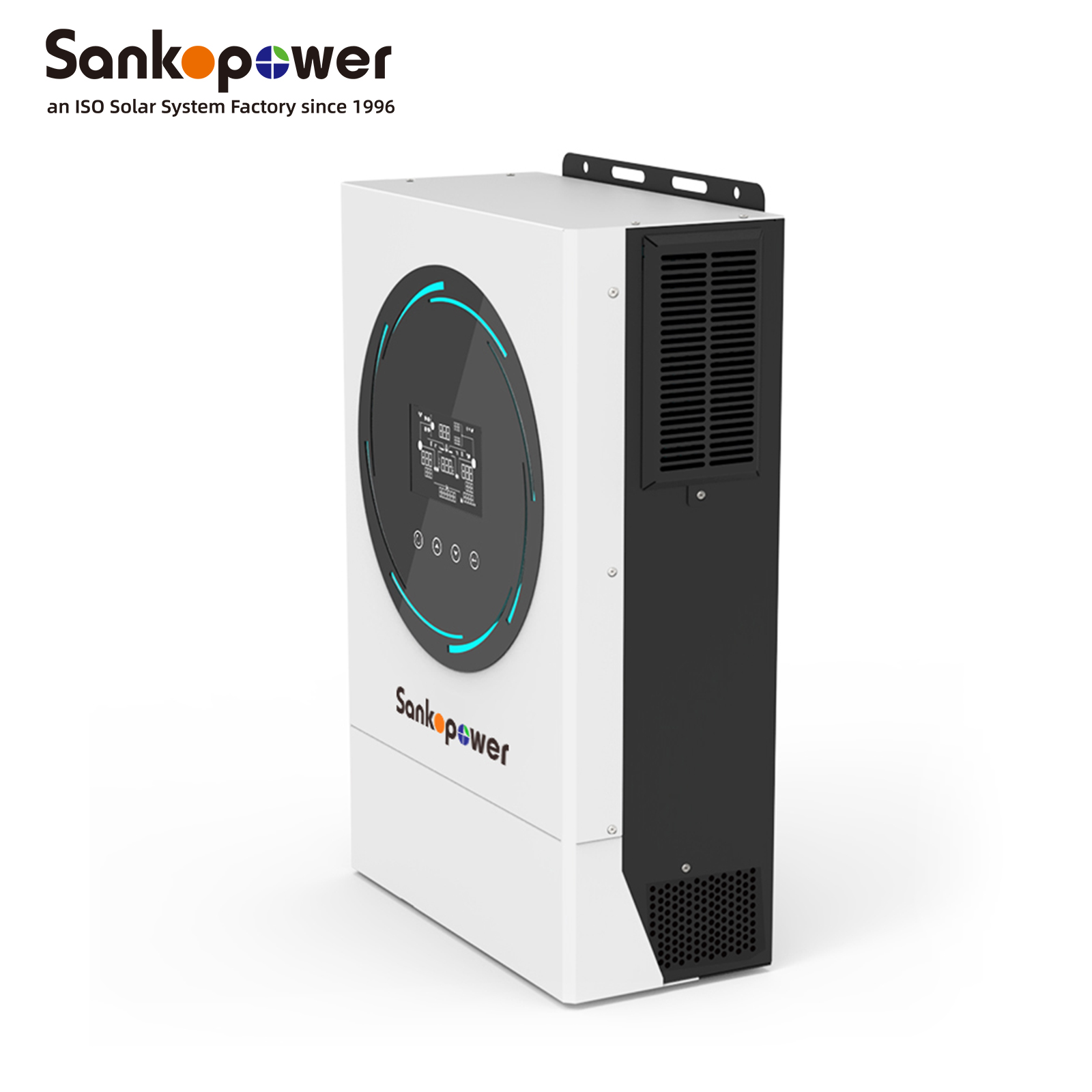

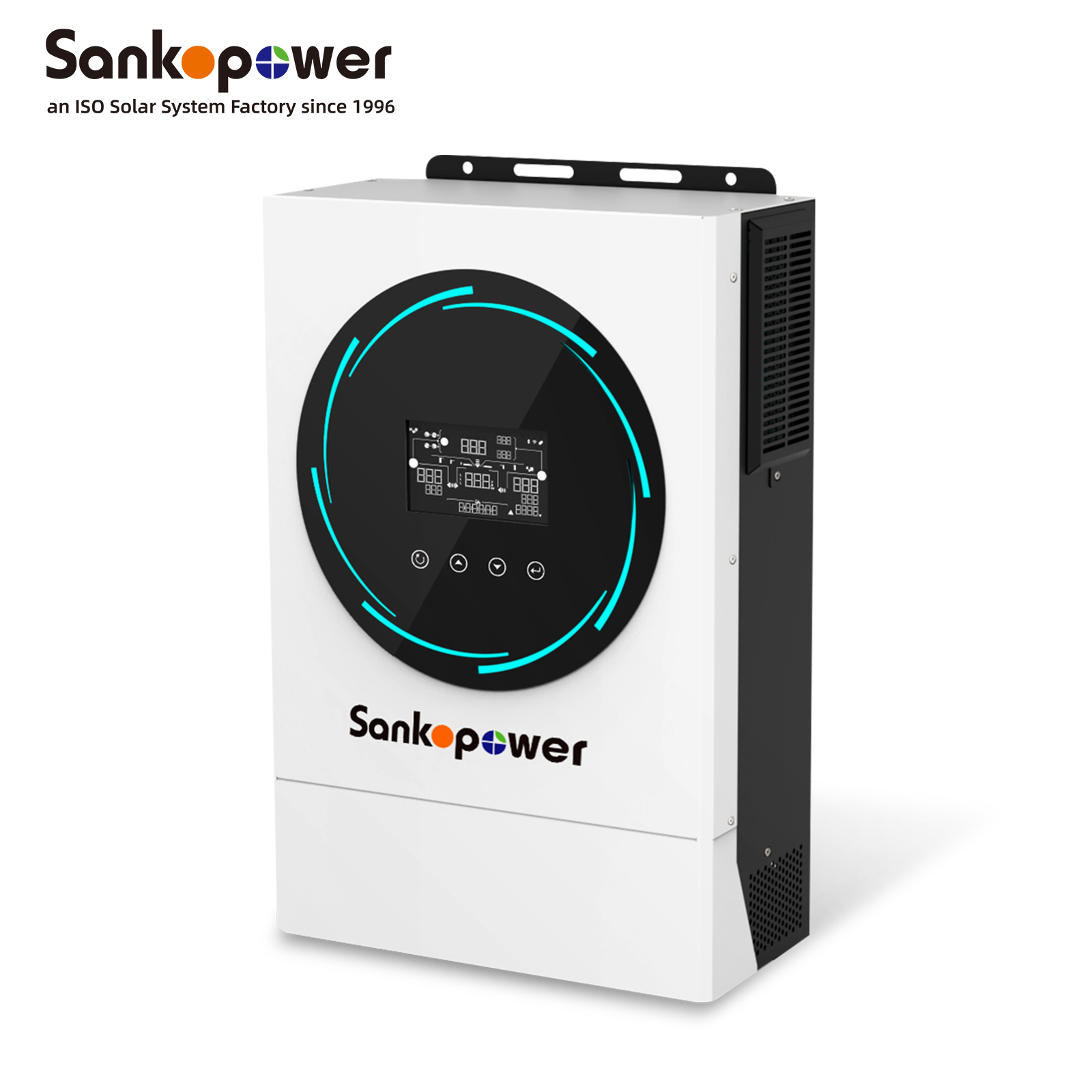

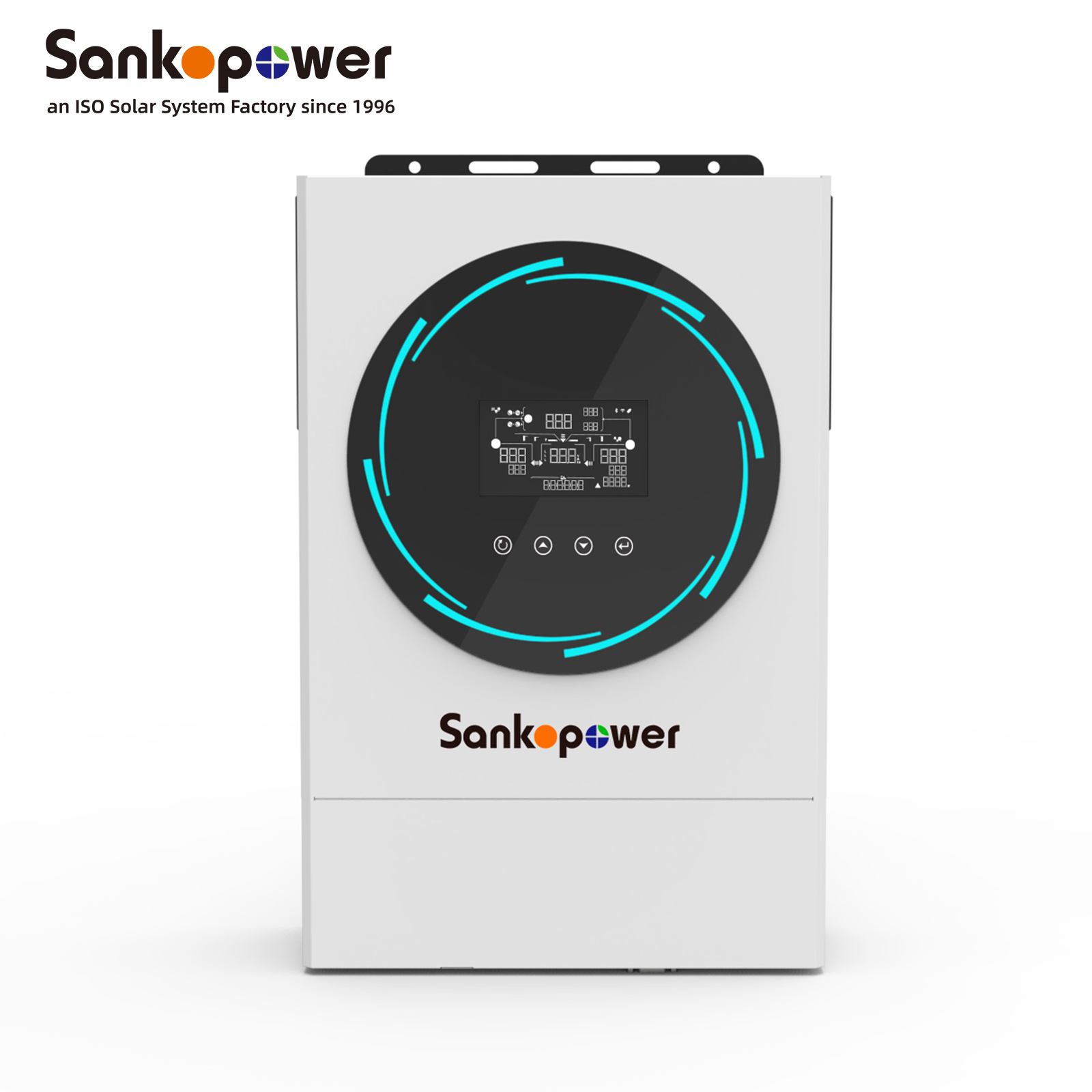

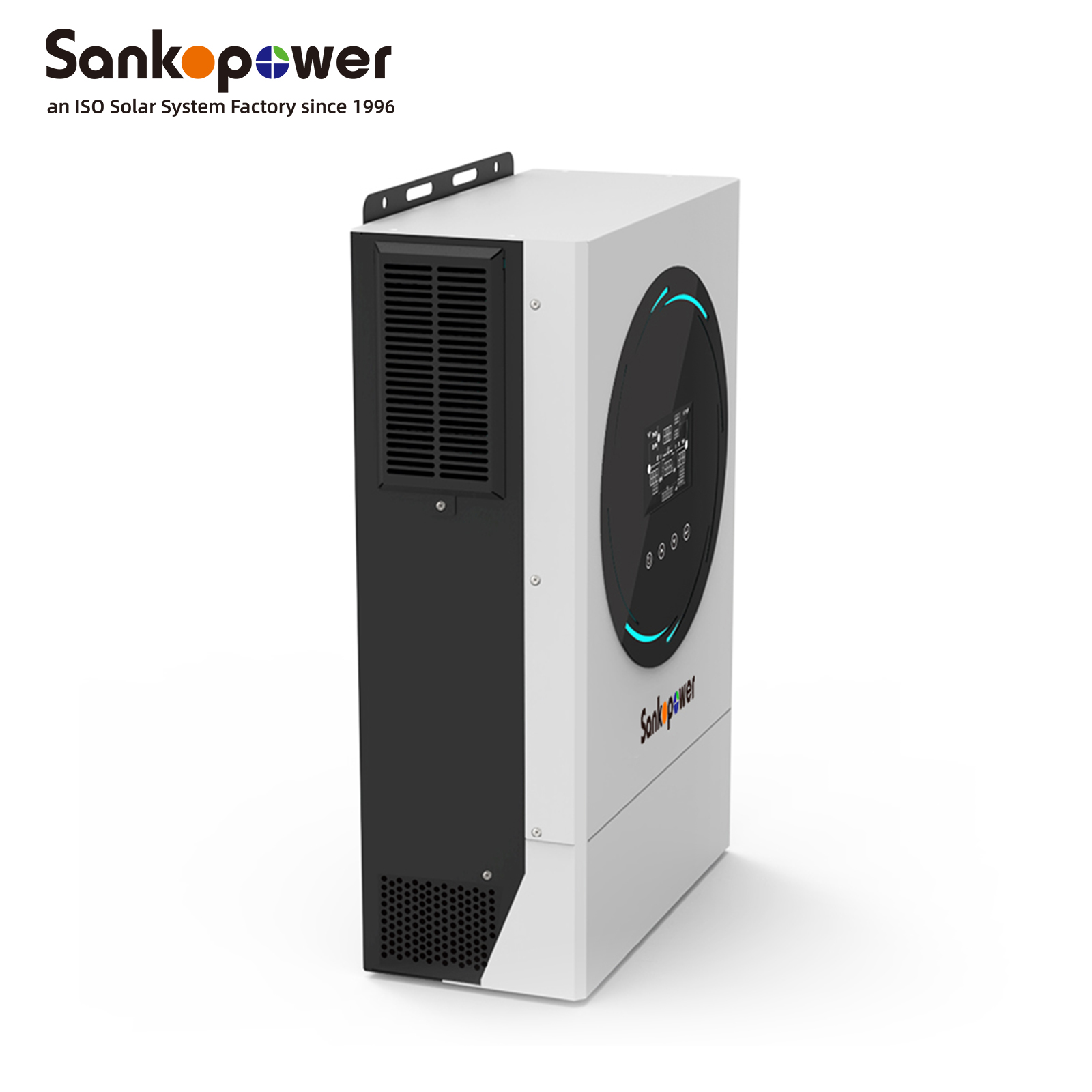

6KW Hybrid MPPT Solar Inverter SolarPolo

6000W/48V SolarPolo Inverter is a REAL hybrid inverter/charger with multi-function, Off Grid and On Grid solar inverter, Support self-consumption and also can feed into the grid. This On grid/ Off grid solar inverter with 120A MPPT solar charge built-in, Pure Sine Wave, High frequency, With WiFI, can Parallel up to 9 units, with LCD display & touch screen.

120A MPPT solar charger inside, max pv input 6kw+ (27A )

  • On grid and Off grid solar inverter
  • Support self-consumption and can feed into the grid.
  • Parallel function up to 9 units
  • With local Wifi built inside (Requires App. Remote Wifi optional)
  • USB on-the-go function
  • User programmable RGB lighting for different operation mode.
  • Smart battery management.
  • Compitable with different types of batteries:Lead acid, AGM, Gel, flooded, tubular,LiFePo4
  • Various communication such as USB/RS232/RS485/dry contact/WIFI/ optional.
  • Touch buttons on LCD display
  • Wide PV input range (Up to 450Vdc), support no battery working during the day time.
  • Auto restart while AC is recovering
  • Overload/ Over temperature/ short circuit protection
  • Cold start function

6000W/48V SolarPolo Inverter is multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operations

6KW Hybrid MPPT Solar Inverter SolarPolo

NOTE 1: 6KW Hybrid MPPT Solar Inverter SolarPolo Series is a wide voltage Hybrid inverter. Solar panel input voltage must be higher than 120V so that can start up the solar inverter to work.
NOTE 2: 6KW Hybrid MPPT Solar Inverter SolarPolo Series supports the WIFI function, and have Built-in WIFI (Requires APP)
NOTE 3: 6KW Hybrid MPPT Solar Inverter SolarPolo Series has parallel function but customer have to buy parallel kit separately.

6KW Hybrid MPPT Solar Inverter SolarPolo TECHNICAL PARAMETER

Model No. 6KVA /6KW SolarPolo Hybrid Inverter
Basical information
Max. PV Input Power 6000W
Rated AC Output Power 6000W
PV Input (DC)
Nominal DC Volt/Max DC Voltage 360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage 120VDC
MPPT Voltage Range 120-450VDC
No. of MPPT Tracker/Max. Input Current 1/27A
AC Input (AC)
AC Start-up Voltage/Auto Restart Volt. 120Vac-140Vac/180Vac
Acceptable Input Voltage Range 90-280Vac or 170-280Vac
Max. AC Input Current 40A
Grid Output in Gri-Tie/ Hybrid Operation (AC)
Nominal Output Volt 220Vac/ 230Vac/ 240Vac,Single Phase dual AC output
Output Voltage Range 184V-265Vac or 195-253V (Selectable)
Nominal Output Current 26.0A
Power Factor 1
Max. Conversion Efficiency (DC/AC) 96%
Battery Mode Output (AC)
Nominal Output Volt 230Vac dual AC output+ 1pcs*12Vdc/ 10A max
Waveform Pure sine wave
Efficiency(DC to AC) 93%
Battery & Charger
Battery Type Supported AGM/Lead Acid/GEL/LIFEPO4 Lihitum Battery
Nominal Battery Voltage 48Vdc
Max Solar Charge Current 120A
Max AC Charge Current 120A
Max Total Charge Current 120A
Products Dimension,D X W X H (mm) 356*471*149
Product Net Weight(kgs) 13.5
Packing Dimension,D X W X H (mm) 535*425*224,1PC/CTN
Gross Weight(kgs) 15
Parallel functions Optional Yes, optional, max 9pcs
Communication Interface RS232,USB,RS485,WIFI
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature -10℃ to 50℃
Storage Temperature -15℃ to 60℃
*Product specifications are subject to change without further notice
